Indexing Plungers - Pull Pins - Round Handle - Steel Plunger - Steel Housing - with Lockout (CP-RLO)
CP-K25RLO

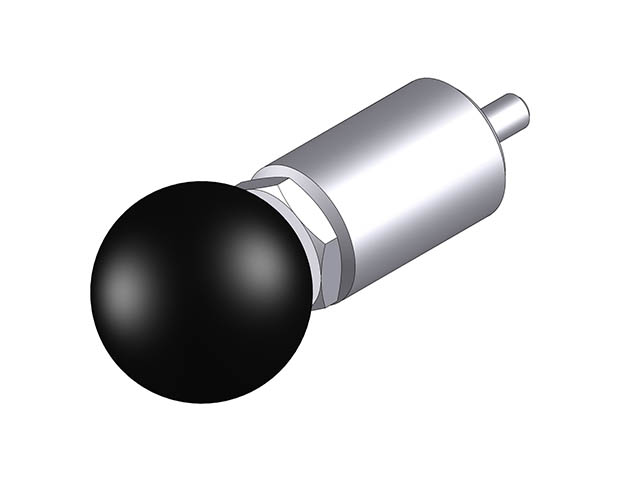

Pull Pin - Steel Plunger w/ Round Handle - Steel Barrel - Lockout - 1/4 in

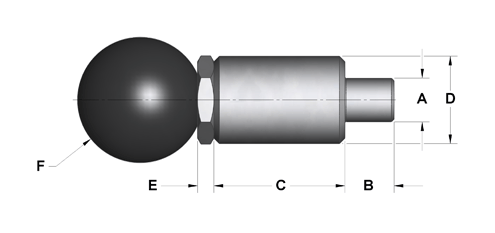

| Part # | A in | B in | C in | D 9 in | E in | F in |
|
|---|---|---|---|---|---|---|---|
| CP-K100RLO | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K200RLO | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K25RLO | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K320RLO | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 | |
| CP-K420RLO | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 |
