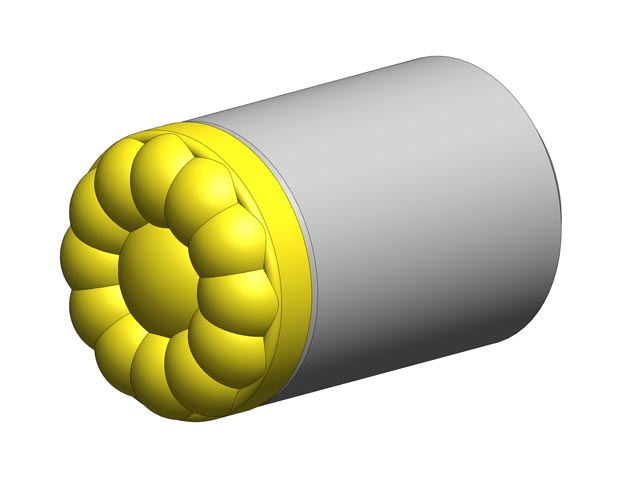

Grippers - Round - Stainless Steel - SofTop® Urethane Surface - Tapped - Inch (CSRP-UR)
CSRP-305-35UR
Sof-Top Gripper - Tapped - 5/16 Dia X 1/2 - 35 Dur

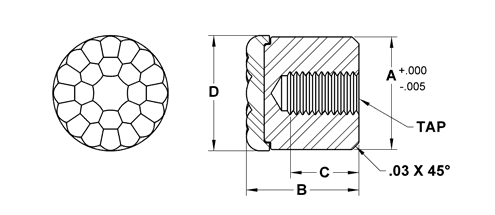

| Part # | A Dia in | B Height | Tap in | C Tap Depth in | D Contact Dia lbs | Durometer Shore A | Urethane Thickness in | Load Compression lbs |
|
|---|---|---|---|---|---|---|---|---|---|
| CSRP-305-35UR | 5/16 | 1/2 | #8-32 | 1/4 | .315 | 35 | .08 | 10 | |
| CSRP-305-60UR | 5/16 | 1/2 | #8-32 | 1/4 | .315 | 60 | .08 | 30 | |
| CSRP-305-80UR | 5/16 | 1/2 | #8-32 | 1/4 | .315 | 80 | .08 | 45 | |
| CSRP-405-35UR | 3/8 | 1/2 | #10-32 | 1/4 | .394 | 35 | .08 | 12 | |
| CSRP-405-60UR | 3/8 | 1/2 | #10-32 | 1/4 | .394 | 60 | .08 | 35 | |
| CSRP-405-80UR | 3/8 | 1/2 | #10-32 | 1/4 | .394 | 80 | .08 | 90 | |
| CSRP-53-35UR | 1/2 | 1/2 | #10-32 | 1/4 | .512 | 35 | .08 | 40 | |
| CSRP-53-60UR | 1/2 | 1/2 | #10-32 | 1/4 | .512 | 60 | .08 | 75 | |
| CSRP-53-80UR | 1/2 | 1/2 | #10-32 | 1/4 | .512 | 80 | .08 | 190 | |
| CSRP-625-35UR | 5/8 | 1/2 | 1/4-28 | 1/4 | .630 | 35 | .08 | 80 | |
| CSRP-625-60UR | 5/8 | 1/2 | 1/4-28 | 1/4 | .630 | 60 | .08 | 160 | |
| CSRP-625-80UR | 5/8 | 1/2 | 1/4-28 | 1/4 | .630 | 80 | .08 | 260 | |
| CSRP-755-35UR | 3/4 | 1/2 | 1/4-28 | 1/4 | .827 | 35 | .12 | 85 | |
| CSRP-755-60UR | 3/4 | 1/2 | 1/4-28 | 1/4 | .827 | 60 | .12 | 230 | |
| CSRP-755-80UR | 3/4 | 1/2 | 1/4-28 | 1/4 | .827 | 80 | .12 | 365 | |
| CSRP-815-35UR | 1" | 1/2 | 1/4-28 | 1/4 | 1.063 | 35 | .12 | 145 | |
| CSRP-815-60UR | 1" | 1/2 | 1/4-28 | 1/4 | 1.063 | 60 | .12 | 300 | |
| CSRP-815-80UR | 1" | 1/2 | 1/4-28 | 1/4 | 1.063 | 80 | .12 | 600 |
