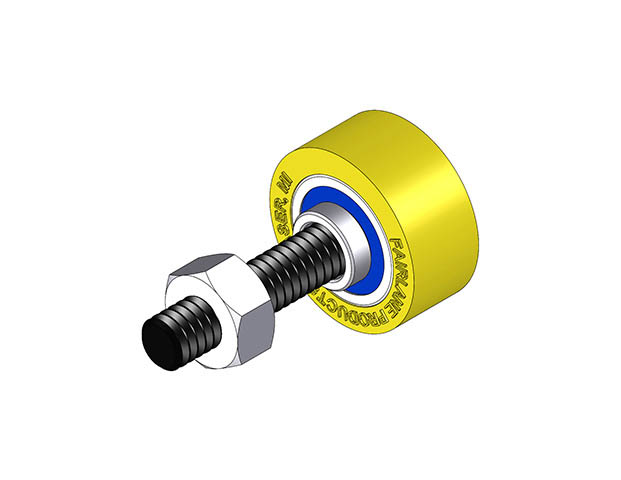

Stud Mount Urethane Covered Bearing Rollers - Double Bearings - Inch
CBD-04146.3-35UR-C
1/4 2RS 7/8 DIA x .39 WD

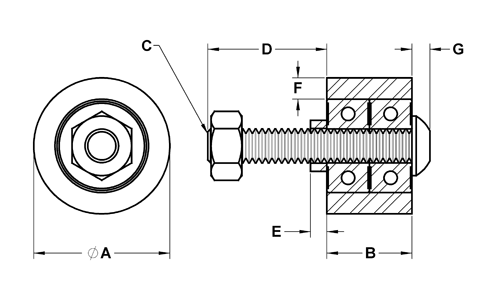

| Part # | A in | B in | C Thread | D in | E in | F (Ref) in | G in | Bearing Number in | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| CBD-04146.3-35UR-C | .875 | .392 | 1/4-20 | 1.108 | .12 | .12 | .132 | R4-2RS | 35 | |
| CBD-04146.3-60UR-C | .875 | .392 | 1/4-20 | 1.108 | .12 | .12 | .132 | R4-2RS | 60 | |
| CBD-04146.3-95UR-C | .875 | .392 | 1/4-20 | 1.108 | .12 | .12 | .132 | R4-2RS | 95 | |
| CBD-041610-35UR-C | 1.00 | .625 | 1/4-20 | .875 | .12 | .15 | .132 | 1602-2RS | 35 | |
| CBD-041610-60UR-C | 1.00 | .625 | 1/4-20 | .875 | .12 | .15 | .132 | 1602-2RS | 60 | |
| CBD-041610-95UR-C | 1.00 | .625 | 1/4-20 | .875 | .12 | .15 | .132 | 1602-2RS | 95 | |
| CBD-052011-35UR-C | 1.25 | .688 | 5/16-18 | 1.062 | .12 | .18 | .166 | 1603-2RS | 35 | |
| CBD-052011-60UR-C | 1.25 | .688 | 5/16-18 | 1.062 | .12 | .18 | .166 | 1603-2RS | 60 | |
| CBD-052011-95UR-C | 1.25 | .688 | 5/16-18 | 1.062 | .12 | .18 | .166 | 1603-2RS | 95 | |
| CBD-052411-35UR-C | 1.50 | .688 | 5/16-18 | 1.062 | .12 | .31 | .166 | 1603-2RS | 35 | |
| CBD-052411-60UR-C | 1.50 | .688 | 5/16-18 | 1.062 | .12 | .31 | .166 | 1603-2RS | 60 | |
| CBD-052411-95UR-C | 1.50 | .688 | 5/16-18 | 1.062 | .12 | .31 | .166 | 1603-2RS | 95 | |
| CBD-0618.510-35UR-C | 1.15 | .625 | 3/8-16 | 1.125 | .12 | .12 | .199 | 1606-2RS | 35 | |
| CBD-0618.510-60UR-C | 1.15 | .625 | 3/8-16 | 1.125 | .12 | .12 | .199 | 1606-2RS | 60 | |
| CBD-0618.510-95UR-C | 1.15 | .625 | 3/8-16 | 1.125 | .12 | .12 | .199 | 1606-2RS | 95 | |
| CBD-062011-35UR-C | 1.25 | .688 | 3/8-16 | 1.062 | .12 | .18 | .199 | 1604-2RS | 35 | |
| CBD-062011-60UR-C | 1.25 | .688 | 3/8-16 | 1.062 | .12 | .18 | .199 | 1604-2RS | 60 | |
| CBD-062011-95UR-C | 1.25 | .688 | 3/8-16 | 1.062 | .12 | .18 | .199 | 1604-2RS | 95 | |
| CBD-062411-35UR-C | 1.50 | .688 | 3/8-16 | 1.062 | .12 | .31 | .199 | 1604-2RS | 35 | |
| CBD-062411-60UR-C | 1.50 | .688 | 3/8-16 | 1.062 | .12 | .31 | .199 | 1604-2RS | 60 | |
| CBD-062411-95UR-C | 1.50 | .688 | 3/8-16 | 1.062 | .12 | .31 | .199 | 1604-2RS | 95 | |
| CBD-082412-35UR-C | 1.50 | .750 | 1/2-13 | 1.250 | .12 | .18 | .266 | 1616-2RS | 35 | |
| CBD-082412-60UR-C | 1.50 | .750 | 1/2-13 | 1.250 | .12 | .18 | .266 | 1616-2RS | 60 | |
| CBD-082412-95UR-C | 1.50 | .750 | 1/2-13 | 1.250 | .12 | .18 | .266 | 1616-2RS | 95 | |
| CBD-082812-35UR-C | 1.75 | .750 | 1/2-13 | 1.250 | .12 | .31 | .266 | 1616-2RS | 35 | |
| CBD-082812-60UR-C | 1.75 | .750 | 1/2-13 | 1.250 | .12 | .31 | .266 | 1616-2RS | 60 | |
| CBD-082812-95UR-C | 1.75 | .750 | 1/2-13 | 1.250 | .12 | .31 | .266 | 1616-2RS | 95 | |
| CBD-083212-35UR-C | 2.00 | .750 | 1/2-13 | 1.250 | .12 | .43 | .266 | 1616-2RS | 35 | |
| CBD-083212-60UR-C | 2.00 | .750 | 1/2-13 | 1.250 | .12 | .43 | .266 | 1616-2RS | 60 | |
| CBD-083212-95UR-C | 2.00 | .750 | 1/2-13 | 1.250 | .12 | .43 | .266 | 1616-2RS | 95 | |
| CBD-102814-95UR-C | 1.75 | .875 | 5/8-11 | 1.375 | .12 | .18 | .331 | 1623-2RS | 95 |
