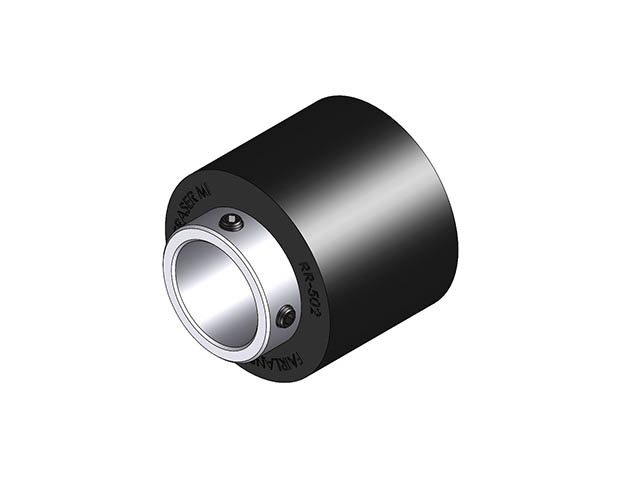

Solid Shaft Drive Rollers - Steel Insert - 1-1/4 in I.D. - Inch
RR-502-60-EX12
Solid Roller - 1-1/4 in Shaft Drive - 60 Dur Neoprene - 2.50 in Dia X 1.94 in Wide

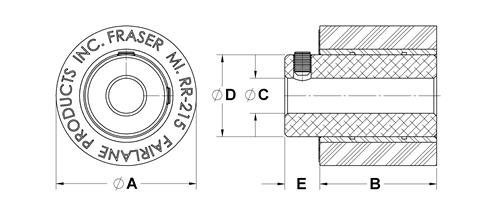

| Part # | A in | B in | C in | D in | E in | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|
| RR-5020-35UR-EX12 | 5.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 35 | |
| RR-5020-60UR-EX12 | 5.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 60 | |
| RR-5020-80UR-EX12 | 5.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 80 | |
| RR-502-60-EX12 | 2.50 | 1.94 | 1.251/1.256 | 1.63 | .50 | Neoprene | 60 | |
| RR-502-60UR-EX12 | 2.50 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 60 | |
| RR-502-80UR-EX12 | 2.50 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 80 | |
| RR-502-95UR-EX12 | 2.50 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 95 | |
| RR-6020-35UR-EX12 | 6.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 35 | |
| RR-6020-60UR-EX12 | 6.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 60 | |
| RR-6020-80UR-EX12 | 6.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 80 | |
| RR-754-35-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Neoprene | 35 | |
| RR-754-60-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Neoprene | 60 | |
| RR-754-60UR-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 60 | |
| RR-754-60W-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Nitrile | 60 | |
| RR-754-80UR-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 80 | |
| RR-754-95UR-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 95 |
