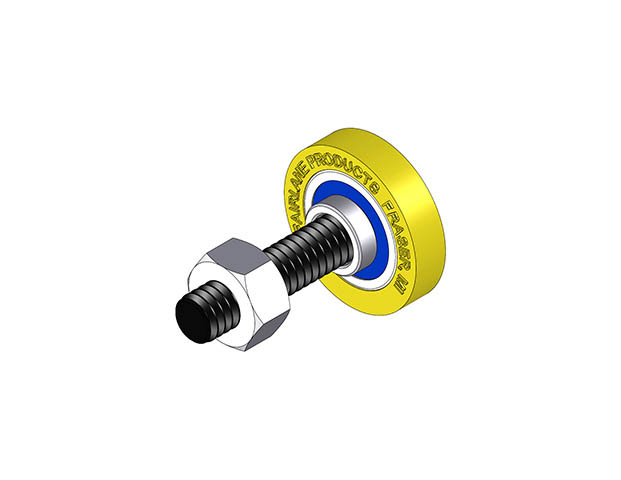

Stud Mount Covered Bearing Rollers - Single Bearings - Inch
CB-04143.15-35UR-C
1/4 2RS 7/8 DIA x .2 WD

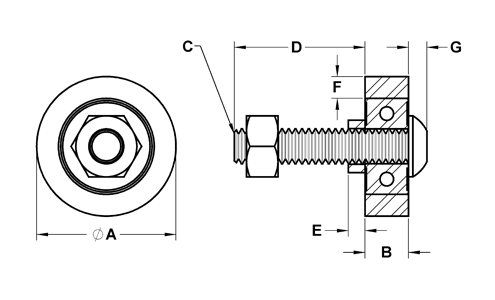

| Part # | A in | B in | C Thread | D in | E in | F (Ref) in | G in | Bearing Number in | Durometer Shore A | Material |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| CB-04143.15-35UR-C | .875 | .196 | 1/4-20 | 1.054 | .12 | .12 | .132 | R4-2RS | 35 | Urethane | |
| CB-04143.15-60UR-C | .875 | .196 | 1/4-20 | 1.054 | .12 | .12 | .132 | R4-2RS | 60 | Urethane | |
| CB-04143.15-95UR-C | .875 | .196 | 1/4-20 | 1.054 | .12 | .12 | .132 | R4-2RS | 95 | Urethane | |
| CB-041605-35UR-C | 1.00 | .313 | 1/4-20 | .938 | .12 | .15 | .132 | 1602-2RS | 35 | Urethane | |
| CB-041605-60UR-C | 1.00 | .313 | 1/4-20 | .938 | .12 | .15 | .132 | 1602-2RS | 60 | Urethane | |
| CB-041605-95UR-C | 1.00 | .313 | 1/4-20 | .938 | .12 | .15 | .132 | 1602-2RS | 95 | Urethane | |
| CB-05185.5-60-C | 1.125 | .343 | 5/16-18 | 1.157 | .12 | .12 | .166 | 1603-2RS | 60 | Neoprene | |
| CB-05185.5-80-C | 1.125 | .343 | 5/16-18 | 1.157 | .12 | .12 | .166 | 1603-2RS | 80 | Neoprene | |
| CB-05205.5-35UR-C | 1.25 | .343 | 5/16-18 | 1.157 | .12 | .18 | .166 | 1603-2RS | 35 | Urethane | |
| CB-05205.5-60-C | 1.125 | .343 | 5/16-18 | 1.157 | .12 | .18 | .166 | 1603-2RS | 60 | Neoprene | |
| CB-05205.5-60UR-C | 1.25 | .343 | 5/16-18 | 1.157 | .12 | .18 | .166 | 1603-2RS | 60 | Urethane | |
| CB-05205.5-80-C | 1.125 | .343 | 5/16-18 | 1.157 | .12 | .18 | .166 | 1603-2RS | 80 | Neoprene | |
| CB-05205.5-95UR-C | 1.25 | .343 | 5/16-18 | 1.157 | .12 | .18 | .166 | 1603-2RS | 95 | Urethane | |
| CB-05245.5-35UR-C | 1.50 | .343 | 5/16-18 | 1.157 | .12 | .31 | .166 | 1603-2RS | 35 | Urethane | |
| CB-05245.5-60UR-C | 1.50 | .343 | 5/16-18 | 1.157 | .12 | .31 | .166 | 1603-2RS | 60 | Urethane | |
| CB-05245.5-80-C | 1.125 | .343 | 5/16-18 | 1.157 | .12 | .31 | .166 | 1603-2RS | 80 | Neoprene | |
| CB-05245.5-95UR-C | 1.50 | .343 | 5/16-18 | 1.157 | .12 | .31 | .166 | 1603-2RS | 95 | Urethane | |
| CB-0618.505-35UR-C | 1.15 | .312 | 3/8-16 | 1.188 | .12 | .12 | .199 | 1606-2RS | 35 | Urethane | |
| CB-0618.505-60UR-C | 1.15 | .312 | 3/8-16 | 1.188 | .12 | .12 | .199 | 1606-2RS | 60 | Urethane | |
| CB-0618.505-95UR-C | 1.15 | .312 | 3/8-16 | 1.188 | .12 | .12 | .199 | 1606-2RS | 95 | Urethane | |
| CB-06205.5-35UR-C | 1.25 | .343 | 3/8-16 | 1.157 | .12 | .18 | .199 | 1604-2RS | 35 | Urethane | |
| CB-06205.5-60UR-C | 1.25 | .343 | 3/8-16 | 1.157 | .12 | .18 | .199 | 1604-2RS | 60 | Urethane | |
| CB-06205.5-95UR-C | 1.25 | .343 | 3/8-16 | 1.157 | .12 | .18 | .199 | 1604-2RS | 95 | Urethane | |
| CB-062408-60-C | 1.50 | .500 | 3/8-16 | 1.157 | .12 | .18 | .199 | 1614-2RS | 60 | Neoprene | |
| CB-062408-80-C | 1.50 | .500 | 3/8-16 | 1.157 | .12 | .18 | .199 | 1614-2RS | 80 | Neoprene | |
| CB-062408-85UR-C | 1.50 | .500 | 3/8-16 | 1.157 | .12 | .18 | .199 | 1614-2RS | 85 | Urethane | |
| CB-06245.5-35UR-C | 1.50 | .343 | 3/8-16 | 1.157 | .12 | .31 | .199 | 1604-2RS | 35 | Urethane | |
| CB-06245.5-60UR-C | 1.50 | .343 | 3/8-16 | 1.157 | .12 | .31 | .199 | 1604-2RS | 60 | Urethane | |
| CB-06245.5-95UR-C | 1.50 | .343 | 3/8-16 | 1.157 | .12 | .31 | .199 | 1604-2RS | 95 | Urethane | |
| CB-063208-60-C | 2.00 | .500 | 3/8-16 | 1.157 | .12 | .43 | .199 | 1614-2RS | 60 | Neoprene | |
| CB-063208-80-C | 2.00 | .500 | 3/8-16 | 1.157 | .12 | .43 | .199 | 1614-2RS | 80 | Neoprene | |
| CB-063208-85UR-C | 2.00 | .500 | 3/8-16 | 1.157 | .12 | .43 | .199 | 1614-2RS | 85 | Urethane | |
| CB-082406-35UR-C | 1.50 | .375 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 35 | Urethane | |
| CB-082406-60-C | 1.50 | .500 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 60 | Neoprene | |
| CB-082406-60UR-C | 1.50 | .375 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 60 | Urethane | |
| CB-082406-80-C | 1.50 | .500 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 80 | Neoprene | |
| CB-082406-95UR-C | 1.50 | .375 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 95 | Urethane | |
| CB-082806-35UR-C | 1.75 | .375 | 1/2-13 | 1.625 | .12 | .31 | .266 | 1616-2RS | 35 | Urethane | |
| CB-082806-60UR-C | 1.75 | .375 | 1/2-13 | 1.625 | .12 | .31 | .266 | 1616-2RS | 60 | Urethane | |
| CB-082806-95UR-C | 1.75 | .375 | 1/2-13 | 1.625 | .12 | .31 | .266 | 1616-2RS | 95 | Urethane | |
| CB-083206-35UR-C | 2.00 | .375 | 1/2-13 | 1.625 | .12 | .43 | .266 | 1616-2RS | 35 | Urethane | |
| CB-083206-60UR-C | 2.00 | .375 | 1/2-13 | 1.625 | .12 | .43 | .266 | 1616-2RS | 60 | Urethane | |
| CB-083206-95UR-C | 2.00 | .375 | 1/2-13 | 1.625 | .12 | .43 | .266 | 1616-2RS | 95 | Urethane | |
| CB-083208-60-C | 2.00 | .500 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 60 | Neoprene | |
| CB-083208-80-C | 2.00 | .500 | 1/2-13 | 1.625 | .12 | .18 | .266 | 1616-2RS | 80 | Neoprene | |
| CB-102807-95UR-C | 1.75 | .438 | 5/8-11 | 1.813 | .12 | .18 | .331 | 1623-2RS | 95 | Urethane |
