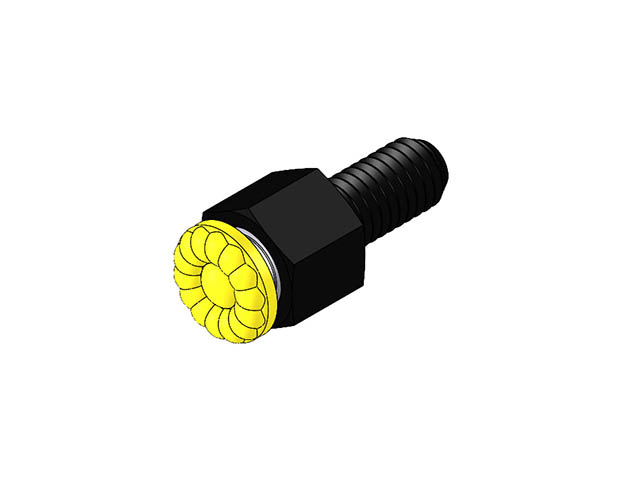

Hex Head Swivotsฎ Gripper Assembly - SofTopฎ Urethane Surface Cone - Metric (MBUH-FC-UR)
MBUH-06012-FC-35UR
Hex Design Swivot - M6 X 1.0 X 12 mm - Sof-Top - 35 Dur

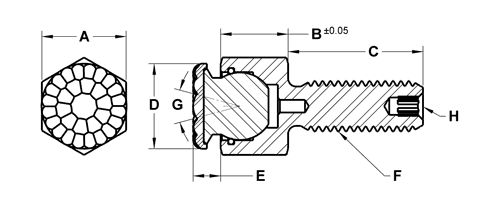

| Part # | A Hex Size mm | B Head Height mm | C Thread Length mm | D Contact Dia mm | E Standoff mm | F Thread mm | G Swivel Degrees | H Int Hex mm | Ball Dia mm | Durometer Shore A | Urethane Thickness mm | Load Compression lbs | Ball Only Part No. mm |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBUH-06012-FC-35UR | 10 | 8 | 12 | 10 | 4 | M6x1.0 | 28 | | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MBUH-06012-FC-60UR | 10 | 8 | 12 | 10 | 4 | M6x1.0 | 28 | | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MBUH-06012-FC-80UR | 10 | 8 | 12 | 10 | 4 | M6x1.0 | 28 | | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MBUH-06025-FC-35UR | 10 | 8 | 25 | 10 | 4 | M6x1.0 | 28 | | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MBUH-06025-FC-60UR | 10 | 8 | 25 | 10 | 4 | M6x1.0 | 28 | | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MBUH-06025-FC-80UR | 10 | 8 | 25 | 10 | 4 | M6x1.0 | 28 | | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MBUH-06040-FC-35UR | 10 | 8 | 40 | 10 | 4 | M6x1.0 | 28 | | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MBUH-06040-FC-60UR | 10 | 8 | 40 | 10 | 4 | M6x1.0 | 28 | | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MBUH-06040-FC-80UR | 10 | 8 | 40 | 10 | 4 | M6x1.0 | 28 | | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MBUH-08012-FC-35UR | 13 | 11.5 | 12 | 13 | 5 | M8x1.25 | 28 | | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MBUH-08012-FC-60UR | 13 | 11.5 | 12 | 13 | 5 | M8x1.25 | 28 | | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MBUH-08012-FC-80UR | 13 | 11.5 | 12 | 13 | 5 | M8x1.25 | 28 | | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MBUH-08025-FC-35UR | 13 | 11.5 | 25 | 13 | 5 | M8x1.25 | 28 | | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MBUH-08025-FC-60UR | 13 | 11.5 | 25 | 13 | 5 | M8x1.25 | 28 | | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MBUH-08025-FC-80UR | 13 | 11.5 | 25 | 13 | 5 | M8x1.25 | 28 | | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MBUH-08040-FC-35UR | 13 | 11.5 | 40 | 13 | 5 | M8x1.25 | 28 | | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MBUH-08040-FC-60UR | 13 | 11.5 | 40 | 13 | 5 | M8x1.25 | 28 | | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MBUH-08040-FC-80UR | 13 | 11.5 | 40 | 13 | 5 | M8x1.25 | 28 | | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MBUH-10015-FC-35UR | 17 | 13 | 15 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MBUH-10015-FC-60UR | 17 | 13 | 15 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MBUH-10015-FC-80UR | 17 | 13 | 15 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MBUH-10030-FC-35UR | 17 | 13 | 30 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MBUH-10030-FC-60UR | 17 | 13 | 30 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MBUH-10030-FC-80UR | 17 | 13 | 30 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MBUH-10050-FC-35UR | 17 | 13 | 50 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MBUH-10050-FC-60UR | 17 | 13 | 50 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MBUH-10050-FC-80UR | 17 | 13 | 50 | 16 | 5 | M10x1.5 | 28 | 3 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MBUH-12020-FC-35UR | 19 | 15 | 20 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 35 | 2 | 150 | MBUB-150-FC-35UR | |
| MBUH-12020-FC-60UR | 19 | 15 | 20 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 60 | 2 | 340 | MBUB-150-FC-60UR | |
| MBUH-12020-FC-80UR | 19 | 15 | 20 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 80 | 2 | 525 | MBUB-150-FC-80UR | |
| MBUH-12040-FC-35UR | 19 | 15 | 40 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 35 | 2 | 150 | MBUB-150-FC-35UR | |
| MBUH-12040-FC-60UR | 19 | 15 | 40 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 60 | 2 | 340 | MBUB-150-FC-60UR | |
| MBUH-12040-FC-80UR | 19 | 15 | 40 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 80 | 2 | 525 | MBUB-150-FC-80UR | |
| MBUH-12060-FC-35UR | 19 | 15 | 60 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 35 | 2 | 150 | MBUB-150-FC-35UR | |
| MBUH-12060-FC-60UR | 19 | 15 | 60 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 60 | 2 | 340 | MBUB-150-FC-60UR | |
| MBUH-12060-FC-80UR | 19 | 15 | 60 | 21 | 6 | M12x1.75 | 24 | 5 | 15 | 80 | 2 | 525 | MBUB-150-FC-80UR | |
| MBUH-16025-FC-35UR | 24 | 19 | 25 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 35 | 2 | 225 | MBUB-200-FC-35UR | |
| MBUH-16025-FC-60UR | 24 | 19 | 25 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 60 | 2 | 400 | MBUB-200-FC-60UR | |
| MBUH-16025-FC-80UR | 24 | 19 | 25 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 80 | 2 | 600 | MBUB-200-FC-80UR | |
| MBUH-16050-FC-35UR | 24 | 19 | 50 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 35 | 2 | 225 | MBUB-200-FC-35UR | |
| MBUH-16050-FC-60UR | 24 | 19 | 50 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 60 | 2 | 400 | MBUB-200-FC-60UR | |
| MBUH-16050-FC-80UR | 24 | 19 | 50 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 80 | 2 | 600 | MBUB-200-FC-80UR | |
| MBUH-16080-FC-35UR | 24 | 19 | 80 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 35 | 2 | 225 | MBUB-200-FC-35UR | |
| MBUH-16080-FC-60UR | 24 | 19 | 80 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 60 | 2 | 400 | MBUB-200-FC-60UR | |
| MBUH-16080-FC-80UR | 24 | 19 | 80 | 23 | 6 | M16x2.0 | 24 | 6 | 20 | 80 | 2 | 600 | MBUB-200-FC-80UR |
