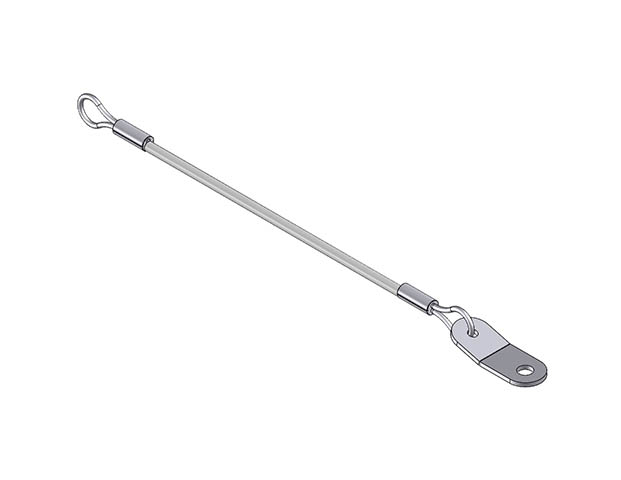

Quick Release Pin Wire Rope Lanyard - 1/16" Dia. - Loop-to-Rectangular Tab
LCL-1-06-R20
Wire Rope Lanyard w/ Clear Cover - 1/16 in Dia X 6 in - Rectangular Tab - .20 in
| Part # | Wire Diameter in | Length in | Tab Style | A Tab Hole Size in | Color |
|
|---|---|---|---|---|---|---|
| LBK-1-06-R20 | 1/16 | 6 | Rectangle | 0.20 | Black | |
| LBK-1-06-R28 | 1/16 | 6 | Rectangle | 0.28 | Black | |
| LBK-1-08-R20 | 1/16 | 8 | Rectangle | 0.20 | Black | |
| LBK-1-08-R28 | 1/16 | 8 | Rectangle | 0.28 | Black | |
| LBK-1-10-R20 | 1/16 | 10 | Rectangle | 0.20 | Black | |
| LBK-1-10-R28 | 1/16 | 10 | Rectangle | 0.28 | Black | |
| LBK-1-12-R20 | 1/16 | 12 | Rectangle | 0.20 | Black | |
| LBK-1-12-R28 | 1/16 | 12 | Rectangle | 0.28 | Black | |
| LCL-1-06-R20 | 1/16 | 6 | Rectangle | 0.20 | Clear | |
| LCL-1-06-R28 | 1/16 | 6 | Rectangle | 0.28 | Clear | |
| LCL-1-08-R20 | 1/16 | 8 | Rectangle | 0.20 | Clear | |
| LCL-1-08-R28 | 1/16 | 8 | Rectangle | 0.28 | Clear | |
| LCL-1-10-R20 | 1/16 | 10 | Rectangle | 0.20 | Clear | |
| LCL-1-10-R28 | 1/16 | 10 | Rectangle | 0.28 | Clear | |
| LCL-1-12-R20 | 1/16 | 12 | Rectangle | 0.20 | Clear | |
| LCL-1-12-R28 | 1/16 | 12 | Rectangle | 0.28 | Clear | |
| LGR-1-06-R20 | 1/16 | 6 | Rectangle | 0.20 | Green | |
| LGR-1-06-R28 | 1/16 | 6 | Rectangle | 0.28 | Green | |
| LGR-1-08-R20 | 1/16 | 8 | Rectangle | 0.20 | Green | |
| LGR-1-08-R28 | 1/16 | 8 | Rectangle | 0.28 | Green | |
| LGR-1-10-R20 | 1/16 | 10 | Rectangle | 0.20 | Green | |
| LGR-1-10-R28 | 1/16 | 10 | Rectangle | 0.28 | Green | |
| LGR-1-12-R20 | 1/16 | 12 | Rectangle | 0.20 | Green | |
| LGR-1-12-R28 | 1/16 | 12 | Rectangle | 0.28 | Green | |
| LNC-1-06-R20 | 1/16 | 6 | Rectangle | 0.20 | No Cover | |
| LNC-1-06-R28 | 1/16 | 6 | Rectangle | 0.28 | No Cover | |
| LNC-1-08-R20 | 1/16 | 8 | Rectangle | 0.20 | No Cover | |
| LNC-1-08-R28 | 1/16 | 8 | Rectangle | 0.28 | No Cover | |
| LNC-1-10-R20 | 1/16 | 10 | Rectangle | 0.20 | No Cover | |
| LNC-1-10-R28 | 1/16 | 10 | Rectangle | 0.28 | No Cover | |
| LNC-1-12-R20 | 1/16 | 12 | Rectangle | 0.20 | No Cover | |
| LNC-1-12-R28 | 1/16 | 12 | Rectangle | 0.28 | No Cover |
