Grippers - Round - Tool Steel - Single Point - Blind Tapped - Inch (HS)
HS-20-1

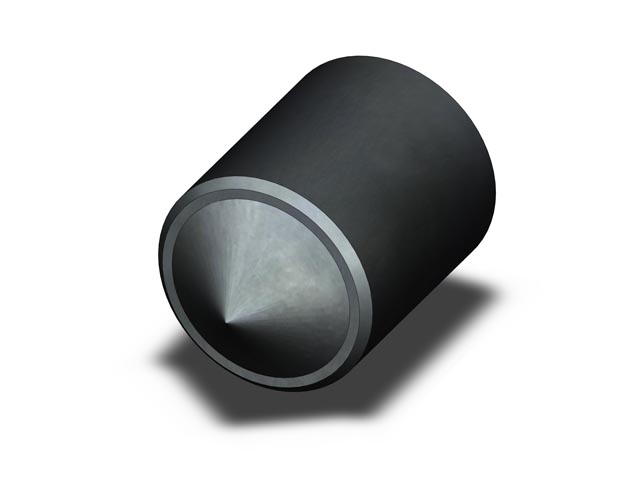

Tool Steel Gripper - Round - 1/4 in Dia X 3/8 in - Single Point

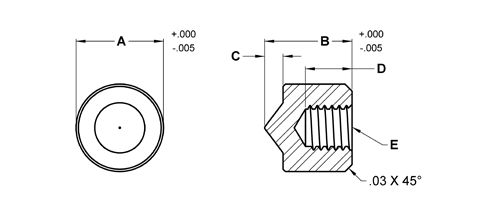

| Part # | A OD in | B Length in | C in | D Thread Length in | E Tap |
|
|---|---|---|---|---|---|---|
| HS-20-1 | 1/4 | 3/8 | 5/64 | 1/8 | #8-32 | |
| HS-205-1 | 1/4 | 1/2 | 5/64 | 1/4 | #8-32 | |
| HS-30-1 | 5/16 | 3/8 | 5/64 | 1/8 | #8-32 | |
| HS-305-1 | 5/16 | 1/2 | 5/64 | 1/4 | #8-32 | |
| HS-40-1 | 3/8 | 3/8 | 5/64 | 1/8 | #10-32 | |
| HS-405-1 | 3/8 | 1/2 | 5/64 | 1/4 | #10-32 | |
| HS-50-1 | 1/2 | 3/8 | 5/64 | 1/8 | #10-32 | |
| HS-53-1 | 1/2 | 1/2 | 5/64 | 1/4 | #10-32 |
