Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Inch (BUH)

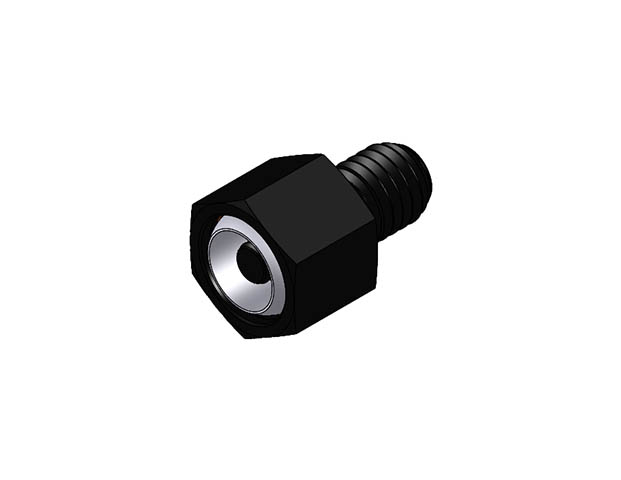

BUH-0370
Hex Design Swivot - 3/8-16 X 1/2 - Replaceable Pad

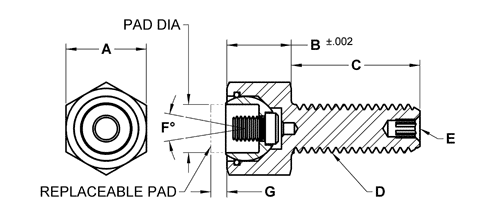

| Part # | A Hex in | B Head in | C Thread Length in | D Thread | E Int Hex in | F Swivel Degrees | G Standoff 1* in | G Standoff 2* in | Ball Dia in | Replaceable Pad Dia in | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUH-0230 | 5/8 | 1/2 | 1/2 | 3/8-24 | 1/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 3,446 | |
| BUH-0231 | 5/8 | 1/2 | 1 | 3/8-24 | 1/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 3,446 | |
| BUH-0231X1.5 | 5/8 | 1/2 | 1-1/2 | 3/8-24 | 1/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 3,446 | |
| BUH-0240 | 13/16 | 5/8 | 1 | 1/2-20 | 3/16 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 7,178 | |
| BUH-0370 | 5/8 | 1/2 | 1/2 | 3/8-16 | 1/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 3,446 | |
| BUH-0375 | 5/8 | 1/2 | 1 | 3/8-16 | 1/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 3,446 | |
| BUH-0375X1.5 | 5/8 | 1/2 | 1-1/2 | 3/8-16 | 1/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 3,446 | |
| BUH-0500 | 13/16 | 5/8 | 1-1/2 | 1/2-20 | 3/16 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 7,178 | |
| BUH-0510 | 13/16 | 5/8 | 1 | 1/2-13 | 3/16 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 5,937 | |
| BUH-0515 | 13/16 | 5/8 | 1-1/2 | 1/2-13 | 3/16 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 5,937 | |
| BUH-0620 | 15/16 | 11/16 | 1 | 5/8-18 | 1/4 | 22 | 1/8 | 1/4 | 3/4 | 5/8 | 11,874 | |
| BUH-0620X2 | 15/16 | 11/16 | 2 | 5/8-18 | 1/4 | 22 | 1/8 | 1/4 | 3/4 | 5/8 | 11,874 | |
| BUH-0625 | 15/16 | 11/16 | 1 | 5/8-11 | 1/4 | 22 | 1/8 | 1/4 | 3/4 | 5/8 | 9,932 | |
| BUH-0625X2 | 15/16 | 11/16 | 2 | 5/8-11 | 1/4 | 22 | 1/8 | 1/4 | 3/4 | 5/8 | 9,932 | |
| BUH-0750 | 1-1/8 | 3/4 | 1 | 3/4-16 | 5/16 | 20 | 1/8 | 1/4 | 7/8 | 3/4 | 13,565 | |
| BUH-0750X2.5 | 1-1/8 | 3/4 | 2-1/2 | 3/4-16 | 5/16 | 20 | 1/8 | 1/4 | 7/8 | 3/4 | 13,565 | |
| BUH-0755 | 1-1/8 | 3/4 | 1 | 3/4-10 | 5/16 | 20 | 1/8 | 1/4 | 7/8 | 3/4 | 14,862 | |
| BUH-0755X2.5 | 1-1/8 | 3/4 | 2-1/2 | 3/4-10 | 5/16 | 20 | 1/8 | 1/4 | 7/8 | 3/4 | 14,862 | |
| BUH-1108X2 | 1-1/2 | 1 | 2 | 1-8 | 3/8 | 20 | 1/8 | 1/4 | 1-1/8 | 1 | 28,158 | |
| BUH-1108X4 | 1-1/2 | 1 | 4 | 1-8 | 3/8 | 20 | 1/8 | 1/4 | 1-1/8 | 1 | 28,158 | |
| BUH-1114X2 | 1-1/2 | 1 | 2 | 1-14 | 3/8 | 20 | 1/8 | 1/4 | 1-1/8 | 1 | 26,234 | |
| BUH-1114X4 | 1-1/2 | 1 | 4 | 1-14 | 3/8 | 20 | 1/8 | 1/4 | 1-1/8 | 1 | 26,234 |
