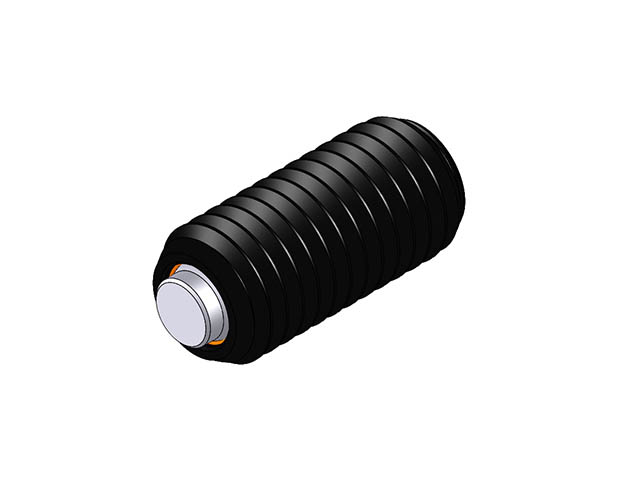

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F)
MTBU-12025-F
Threaded Design Swivot - M12 X 25 mm - Flat

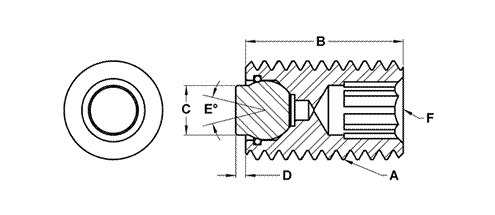

| Part # | A Thread | B Thread Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Internal Hex mm | Ball Dia mm | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MTBU-12025-F | M12x1.75 | 25 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-F | 3,440 | |
| MTBU-12025-F-T | M12x1.75 | 25 | 6 | 3 | 28 | 6 | 7 | MBUB-070-F-T | 3,440 | |
| MTBU-12035-F | M12x1.75 | 35 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-F | 3,440 | |
| MTBU-12035-F-T | M12x1.75 | 35 | 6 | 3 | 28 | 6 | 7 | MBUB-070-F-T | 3,440 | |
| MTBU-12050-F | M12x1.75 | 50 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-F | 3,440 | |
| MTBU-12050-F-T | M12x1.75 | 50 | 6 | 3 | 28 | 6 | 7 | MBUB-070-F-T | 3,440 | |
| MTBU-16025-F | M16x2.0 | 25 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-F | 5,190 | |
| MTBU-16025-F-T | M16x2.0 | 25 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-F-T | 5,190 | |
| MTBU-16035-F | M16x2.0 | 35 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-F | 5,190 | |
| MTBU-16035-F-T | M16x2.0 | 35 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-F-T | 5,190 | |
| MTBU-16050-F | M16x2.0 | 50 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-F | 5,190 | |
| MTBU-16050-F-T | M16x2.0 | 50 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-F-T | 5,190 | |
| MTBU-20030-F | M20x2.5 | 30 | 10 | 4 | 42 | 10 | 13 | MBUB-130-F | 8,379 | |
| MTBU-20030-F-T | M20x2.5 | 30 | 10 | 6 | 42 | 10 | 13 | MBUB-130-F-T | 8,379 | |
| MTBU-20050-F | M20x2.5 | 50 | 10 | 4 | 42 | 10 | 13 | MBUB-130-F | 8,379 | |
| MTBU-20050-F-T | M20x2.5 | 50 | 10 | 6 | 42 | 10 | 13 | MBUB-130-F-T | 8,379 | |
| MTBU-20070-F | M20x2.5 | 70 | 10 | 4 | 42 | 10 | 13 | MBUB-130-F | 8,379 | |
| MTBU-20070-F-T | M20x2.5 | 70 | 10 | 6 | 42 | 10 | 13 | MBUB-130-F-T | 8,379 | |
| MTBU-24040-F | M24x3.0 | 40 | 12 | 4 | 45 | 10 | 15 | MBUB-150-F | 12,233 | |
| MTBU-24040-F-T | M24x3.0 | 40 | 12 | 6 | 45 | 10 | 15 | MBUB-150-F-T | 12,233 | |
| MTBU-24080-F | M24x3.0 | 80 | 12 | 4 | 45 | 10 | 15 | MBUB-150-F | 12,233 | |
| MTBU-24080-F-T | M24x3.0 | 80 | 12 | 6 | 45 | 10 | 15 | MBUB-150-F-T | 12,233 |
