Hex Head Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBUH-F)
MBUH-06012-F

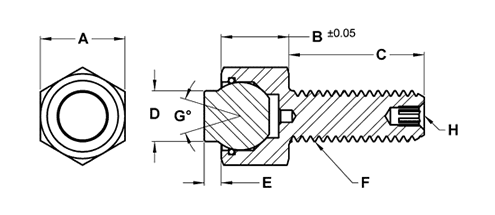

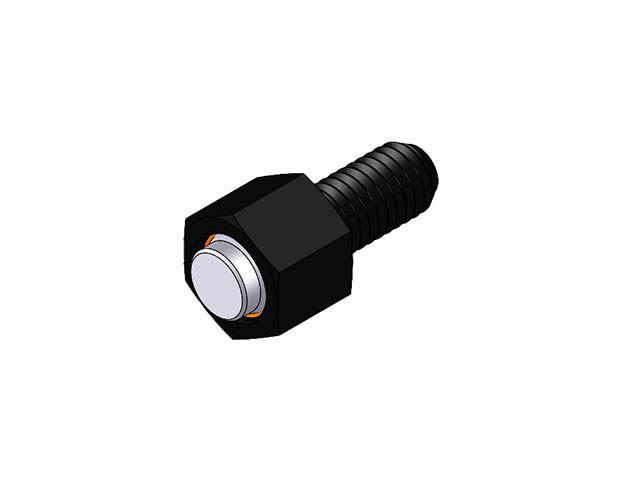

Hex Design Swivot - M6 X 12 mm - Flat
| Part # | A Hex mm | B Body mm | C Thread Length mm | D Contact Dia mm | E Standoff mm | F Thread | H Int Hex lbs | G Swivel Degrees | Ball Dia mm | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBUH-06012-F | 10 | 8 | 12 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-F | 2,061 | |
| MBUH-06012-F-T | 10 | 8 | 12 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-F-T | 2,061 | |
| MBUH-06025-F | 10 | 8 | 25 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-F | 2,061 | |
| MBUH-06025-F-T | 10 | 8 | 25 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-F-T | 2,061 | |
| MBUH-06040-F | 10 | 8 | 40 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-F | 2,061 | |
| MBUH-06040-F-T | 10 | 8 | 40 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-F-T | 2,061 | |
| MBUH-08012-F | 13 | 11.5 | 12 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-F | 3,450 | |
| MBUH-08012-F-T | 13 | 11.5 | 12 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-F-T | 3,450 | |
| MBUH-08025-F | 13 | 11.5 | 25 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-F | 3,450 | |
| MBUH-08025-F-T | 13 | 11.5 | 25 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-F-T | 3,450 | |
| MBUH-08040-F | 13 | 11.5 | 40 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-F | 3,450 | |
| MBUH-08040-F-T | 13 | 11.5 | 40 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-F-T | 3,450 | |
| MBUH-10015-F | 17 | 13 | 15 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-F | 4,194 | |
| MBUH-10015-F-T | 17 | 13 | 15 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-F-T | 4,194 | |
| MBUH-10030-F | 17 | 13 | 30 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-F | 4,194 | |
| MBUH-10030-F-T | 17 | 13 | 30 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-F-T | 4,194 | |
| MBUH-10050-F | 17 | 13 | 50 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-F | 4,194 | |
| MBUH-10050-F-T | 17 | 13 | 50 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-F-T | 4,194 | |
| MBUH-12020-F | 19 | 15 | 20 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-F | 6,627 | |
| MBUH-12020-F-T | 19 | 15 | 20 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-F-T | 6,627 | |
| MBUH-12040-F | 19 | 15 | 40 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-F | 6,627 | |
| MBUH-12040-F-T | 19 | 15 | 40 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-F-T | 6,627 | |
| MBUH-12060-F | 19 | 15 | 60 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-F | 6,627 | |
| MBUH-12060-F-T | 19 | 15 | 60 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-F-T | 6,627 | |
| MBUH-16025-F | 24 | 19 | 25 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-F | 11,183 | |
| MBUH-16050-F | 24 | 19 | 50 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-F | 11,183 | |
| MBUH-16080 | 24 | 19 | 80 | 16 | 4 | 20 | 40 | 6 | 20 | 16 | 11,193 | |
| MBUH-16080-F | 24 | 19 | 80 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-F | 11,183 |
