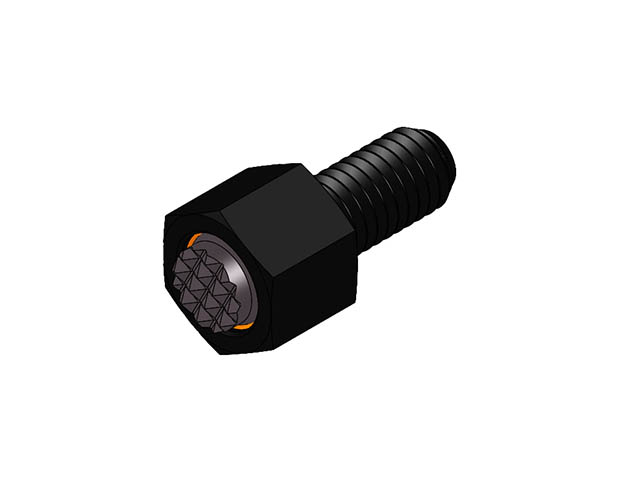

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S)
MBUH-06012-S
Hex Design Swivot - M6 X 12 mm - Super Fine

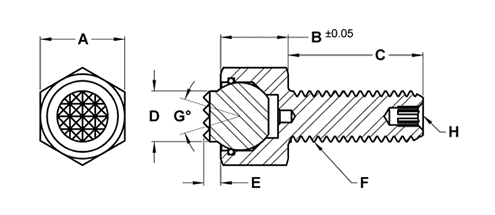

| Part # | A Hex mm | B Head Height mm | C Thread Length mm | D Contact Dia mm | E Standoff mm | F Thread | G Swivel Degrees | H Int Hex mm | Ball Dia mm | Ball Only Part No. | Tooth Pattern | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBUH-06012-S | 10 | 8 | 12 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-S | SF | 2,061 | |
| MBUH-06012-S-T | 10 | 8 | 12 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-S-T | SF | 2,061 | |
| MBUH-06025-S | 10 | 8 | 25 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-S | SF | 2,061 | |
| MBUH-06025-S-T | 10 | 8 | 25 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-S-T | SF | 2,061 | |
| MBUH-06040-S | 10 | 8 | 40 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-S | SF | 2,061 | |
| MBUH-06040-S-T | 10 | 8 | 40 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-S-T | SF | 2,061 | |
| MBUH-08012-S | 13 | 11.5 | 12 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-S | EF | 3,450 | |
| MBUH-08012-S-T | 13 | 11.5 | 12 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-S-T | EF | 3,450 | |
| MBUH-08025-S | 13 | 11.5 | 25 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-S | EF | 3,450 | |
| MBUH-08025-S-T | 13 | 11.5 | 25 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-S-T | EF | 3,450 | |
| MBUH-08040-S | 13 | 11.5 | 40 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-S | EF | 3,450 | |
| MBUH-08040-S-T | 13 | 11.5 | 40 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-S-T | EF | 3,450 | |
| MBUH-10015-S | 17 | 13 | 15 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-S | EF | 4,194 | |
| MBUH-10015-S-T | 17 | 13 | 15 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-S-T | EF | 4,194 | |
| MBUH-10030-S | 17 | 13 | 30 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-S | EF | 4,194 | |
| MBUH-10030-S-T | 17 | 13 | 30 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-S-T | EF | 4,194 | |
| MBUH-10050-S | 17 | 13 | 50 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-S | EF | 4,194 | |
| MBUH-10050-S-T | 17 | 13 | 50 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-S-T | EF | 4,194 | |
| MBUH-12020-S | 19 | 15 | 20 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-S | Fine | 6,627 | |
| MBUH-12020-S-T | 19 | 15 | 20 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-S-T | Fine | 6,627 | |
| MBUH-12040-S | 19 | 15 | 40 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-S | Fine | 6,627 | |
| MBUH-12040-S-T | 19 | 15 | 40 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-S-T | Fine | 6,627 | |
| MBUH-12060-S | 19 | 15 | 60 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-S | Fine | 6,627 | |
| MBUH-12060-S-T | 19 | 15 | 60 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-S-T | Fine | 6,627 | |
| MBUH-16025-S | 24 | 19 | 25 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-S | Fine | 11,183 | |
| MBUH-16050-S | 24 | 19 | 50 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-S | Fine | 11,183 | |
| MBUH-16050-S-T | 24 | 19 | 50 | 16 | 6 | M16x2.0 | 40 | 6 | 20 | MBUB-200-S-T | Fine | 11,183 | |
| MBUH-16080-S | 24 | 19 | 80 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-S | Fine | 11,183 | |
| MBUH-16080-S-T | 24 | 19 | 80 | 16 | 6 | M16x2.0 | 40 | 6 | 20 | MBUB-200-S-T | Fine | 11,183 |
