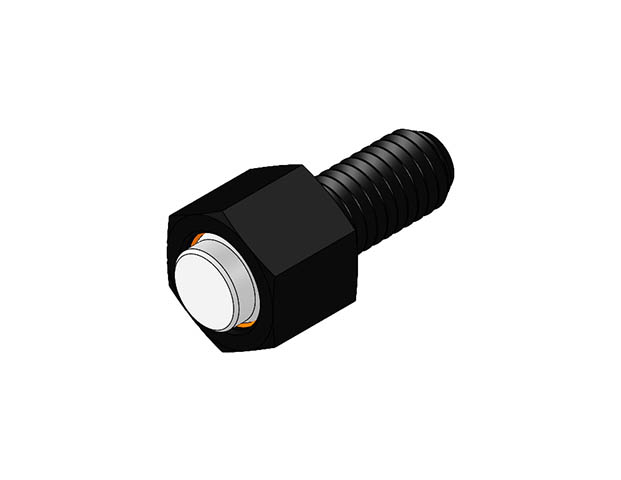

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D)
MBUH-06012-D
Hex Design Swivot - M6 X 12 mm - Delrin

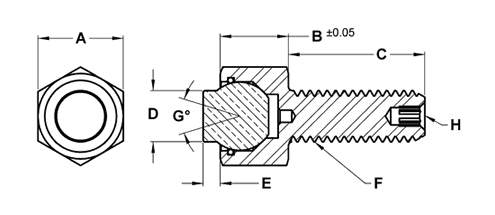

| Part # | A Hex mm | B Body mm | C Thread Length mm | D Contact Dia mm | E Standoff mm | F Thread | G Swivel Degrees | H Int Hex lbs | Ball Dia mm | Ball Only Part No. mm |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MBUH-06012-D | 10 | 8 | 12 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-D | |
| MBUH-06012-D-T | 10 | 8 | 12 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-D-T | |
| MBUH-06025-D | 10 | 8 | 25 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-D | |
| MBUH-06025-D-T | 10 | 8 | 25 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-D-T | |
| MBUH-06040-D | 10 | 8 | 40 | 6 | 1.5 | M6x1.0 | 28 | — | 7 | MBUB-070-D | |
| MBUH-06040-D-T | 10 | 8 | 40 | 6 | 3 | M6x1.0 | 28 | — | 7 | MBUB-070-D-T | |
| MBUH-08012-D | 13 | 11.5 | 12 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-D | |
| MBUH-08012-D-T | 13 | 11.5 | 12 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-D-T | |
| MBUH-08025-D | 13 | 11.5 | 25 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-D | |
| MBUH-08025-D-T | 13 | 11.5 | 25 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-D-T | |
| MBUH-08040-D | 13 | 11.5 | 40 | 8.5 | 1.5 | M8x1.25 | 24 | — | 10 | MBUB-100-D | |
| MBUH-08040-D-T | 13 | 11.5 | 40 | 8.5 | 3 | M8x1.25 | 24 | — | 10 | MBUB-100-D-T | |
| MBUH-10015-D | 17 | 13 | 15 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-D | |
| MBUH-10015-D-T | 17 | 13 | 15 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-D-T | |
| MBUH-10030-D | 17 | 13 | 30 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-D | |
| MBUH-10030-D-T | 17 | 13 | 30 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-D-T | |
| MBUH-10050-D | 17 | 13 | 50 | 10 | 4 | M10x1.5 | 42 | 3 | 13 | MBUB-130-D | |
| MBUH-10050-D-T | 17 | 13 | 50 | 10 | 6 | M10x1.5 | 42 | 3 | 13 | MBUB-130-D-T | |
| MBUH-12020-D | 19 | 15 | 20 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-D | |
| MBUH-12020-D-T | 19 | 15 | 20 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-D-T | |
| MBUH-12040-D | 19 | 15 | 40 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-D | |
| MBUH-12040-D-T | 19 | 15 | 40 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-D-T | |
| MBUH-12060-D | 19 | 15 | 60 | 12 | 4 | M12x1.75 | 45 | 5 | 15 | MBUB-150-D | |
| MBUH-12060-D-T | 19 | 15 | 60 | 12 | 6 | M12x1.75 | 45 | 5 | 15 | MBUB-150-D-T | |
| MBUH-16025-D | 24 | 19 | 25 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-D | |
| MBUH-16050-D | 24 | 19 | 50 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-D | |
| MBUH-16080-D | 24 | 19 | 80 | 16 | 4 | M16x2.0 | 40 | 6 | 20 | MBUB-200-D |
