Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BBU-F)
BBU-100-F

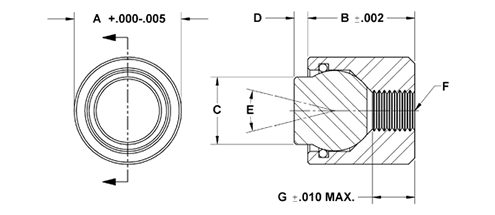

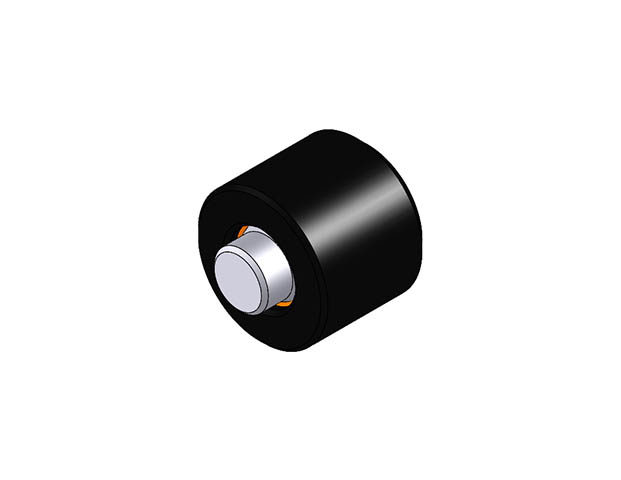

Base Design Swivot - 3/8 in Dia X 5/16 in - Flat
| Part # | A Dia in | B Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Tap | G Thread Length in | Ball Dia in | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| BBU-100-F | 3/8 | 5/16 | 5/32 | 1/16 | 28 | #4-40 | 1/4 | 3/16 | BUB-187-F | 1,835 | |
| BBU-105-F | 3/8 | 7/16 | 5/32 | 1/16 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-F | 1,835 | |
| BBU-107-F | 3/8 | 11/16 | 5/32 | 1/16 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-F | 1,835 | |
| BBU-200-F | 7/16 | 3/8 | 1/4 | 1/16 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-F | 3,339 | |
| BBU-200-F-T | 7/16 | 3/8 | 1/4 | 1/8 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-F-T | 3,339 | |
| BBU-201-F | 7/16 | 15/16 | 1/4 | 1/16 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-F | 3,339 | |
| BBU-201-F-T | 7/16 | 15/16 | 1/4 | 1/8 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-F-T | 3,339 | |
| BBU-300-F | 1/2 | 1/2 | 5/16 | 1/16 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-F | 4,697 | |
| BBU-300-F-T | 1/2 | 1/2 | 5/16 | 1/8 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-F-T | 4,697 | |
| BBU-301-F | 1/2 | 1 | 5/16 | 1/16 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-F | 4,697 | |
| BBU-301-F-T | 1/2 | 1 | 5/16 | 1/8 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-F-T | 4,697 | |
| BBU-500-F | 5/8 | 3/4 | 3/8 | 1/8 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-F | 5,849 | |
| BBU-500-F-T | 5/8 | 3/4 | 3/8 | 1/4 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-F-T | 5,849 | |
| BBU-600-F | 13/16 | 7/8 | 1/2 | 1/8 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-F | 10,925 | |
| BBU-600-F-T | 13/16 | 7/8 | 1/2 | 1/4 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-F-T | 10,925 | |
| BBU-700-F | 15/16 | 7/8 | 5/8 | 1/8 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-F | 13,325 | |
| BBU-700-F-T | 15/16 | 7/8 | 5/8 | 1/4 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-F-T | 13,325 |
