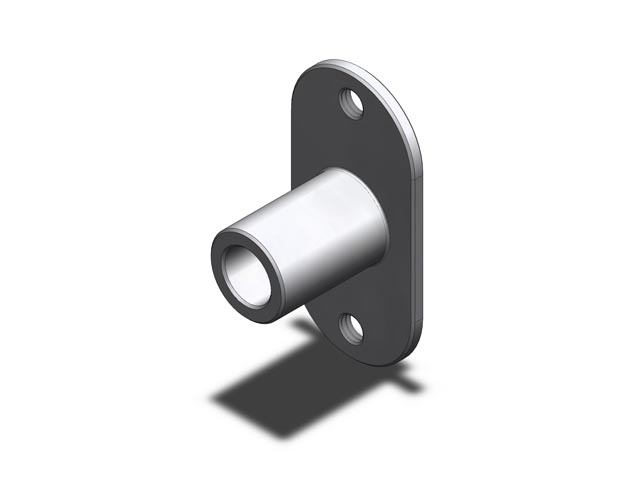

Ball Lock Pin Receptacle - Oblong - 5 mm

Part Number: MOBFR-05
Weight: 0 lbs 4 ozs
Use With Pin Dia: 5mm
Flange Style: Oblong
Length - Overall: 16.51
Diameter - Body: 9.53
Height - Flange: 1.52
Length - between Mounting Hole Centers: 25
Width - Overall: 15.88
Thread - Internal - Tap: M4
Length - Overall: 31.75
Grip Length Reduction: 10

Part:MOBFR-05

MOBFR-05
