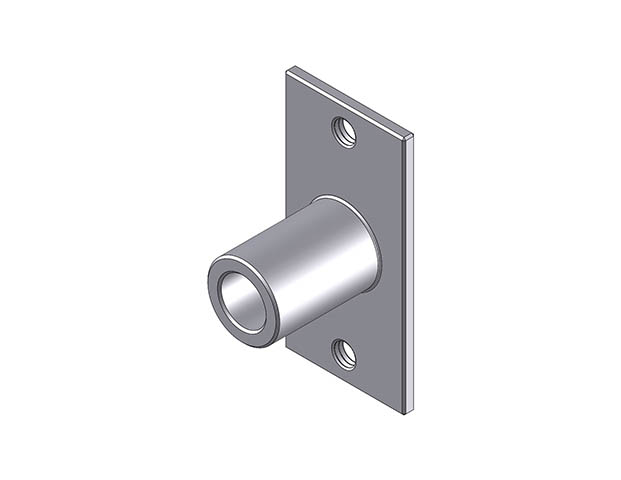

Ball Lock Pin Receptacle - Rectangle - 3/16 in

Part Number: REFR-187
Use With Pin Dia: 3/16
Flange Style: Rectangle
Length - Overall: 0.650
Diameter - Body: 0.375
Height - Flange: 0.060
Length - between Mounting Hole Centers: 1.000
Width - Overall: 0.625
Thread - Internal - Tap: 6-32
Length - Overall: 1.250
Grip Length Reduction: 0.375

Part:REFR-187

REFR-187
