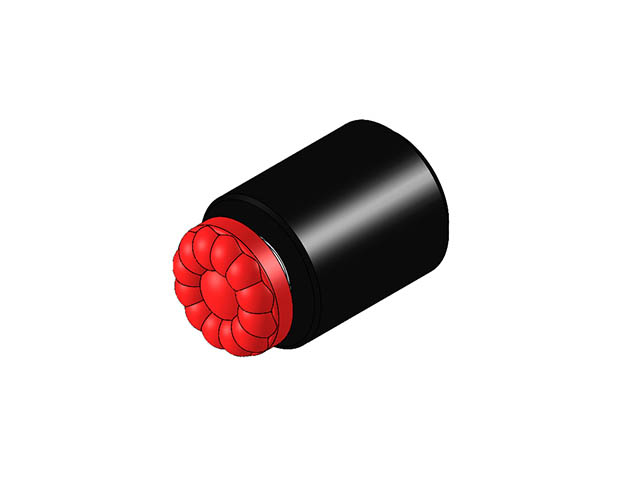

Base Design Swivot - 3/8 Dia X 7/16 - Sof-Top - 80 Dur

Part Number: BBU-105-FC-80UR
Diameter - Overall: 3/8
Length - Body: 7/16
Diameter - Contact Surface: .315
Degree - Swivel: 28
Diameter - Ball: 3/16
Length - Thread: 5/16
Durometer: 80
Thread - Internal - Tap: #4-40
Ball Only Part No.: BUB-187-FC-80UR
Rating - Load: 40
Thickness - Urethane: .08

Part:BBU-105-FC-80UR

BBU-105-FC-80UR
