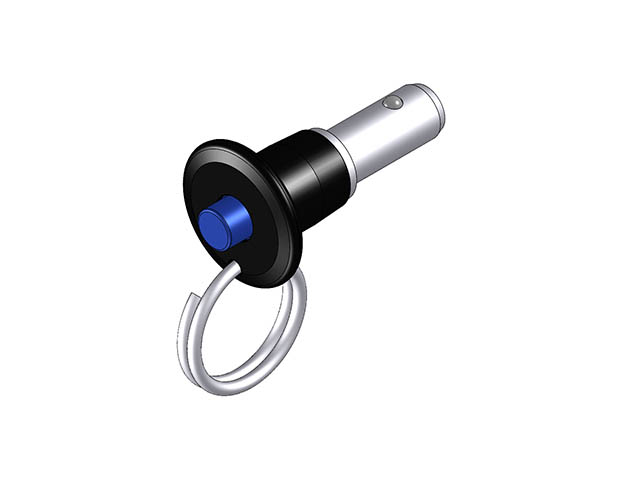

Button Handle Pin - 300 Series SS Shank - 3/8 in X .50 in

Part Number: BACS-37-050
Weight: 0 lbs 1 ozs
Diameter - Nominal: 3/8
Diameter - Shaft - Max: 0.3735
Diameter - Shaft - Min: 0.372
Diameter - at Balls: 0.44
Length - to top of Balls: 0.365
Length - Head: 1.01
Width - Shoulder: 0.56
Diameter - Button: 0.29
Length - Head Below Rim: 0.7
Width - Overall: 1

Part:BACS-37-050

BACS-37-050

Download

Download CAD models here
