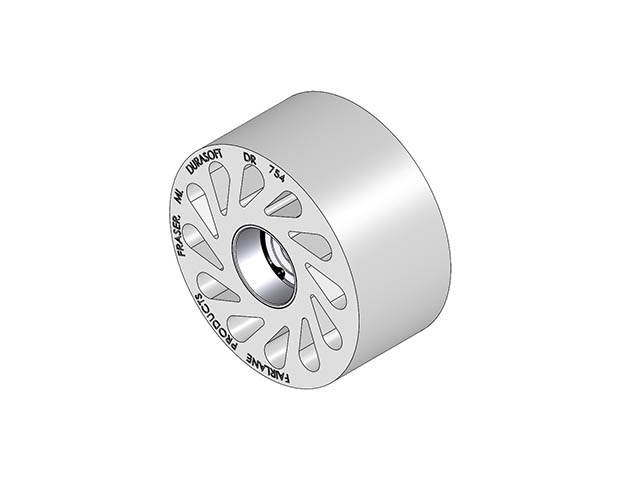

DuraSoft® Roller - Standard Bearing Mount - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide

Part Number: DR-754-35W-B
Weight: 1 lbs
Diameter - Overall: 4.00
Material: Nitrile
Width - Roller: 1.94
Diameter - Inside - Bearing Mount: .500/.505
Diameter - Inside - Roller: 1.245/1.250
Width - Bearing Mount: .745/.755
No. of Bearings: 1
Bearing Type: C
Durometer: 35

Part:DR-754-35W-B

DR-754-35W-B

Download

Download CAD models here
