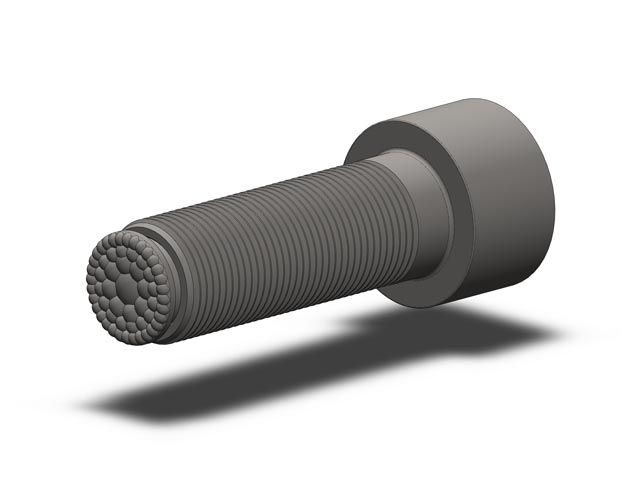

Headed Thrust Screw - Sof-Top - 1-14 X 3 - 60 Dur

Part Number: TSH-1114X3-FC-60UR
Weight: 0 lbs 15 ozs
Thread - External: 1"-14
Length - Shank: 3
Length - Thread: 3
Diameter - Contact Surface: .906
Degree Swivel: 32
Diameter - Ball: 3/4
Hex - Internal - Flat: 3/4
Ball Only Part No.: BUB-700-FC-60UR
Durometer: 60
Thickness - Urethane: .08
Load Compression: 400

Part:TSH-1114X3-FC-60UR

TSH-1114X3-FC-60UR
