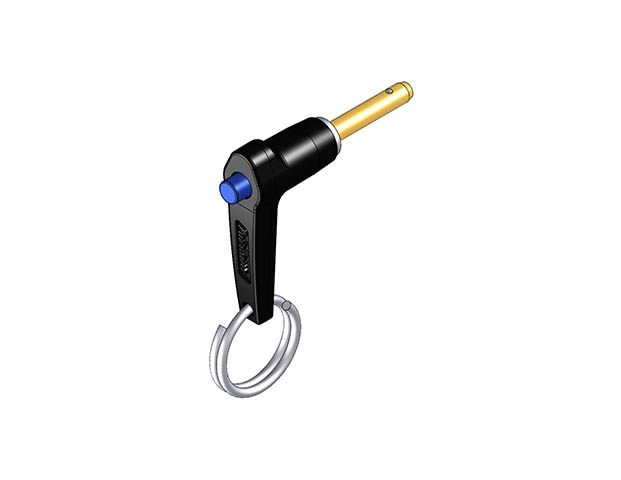

L-Handle Pin - 4130 Shank - 3/16 in Dia X .75 in

Part Number: LAAS-18-075
Weight: 0 lbs 1 ozs
Diameter - Nominal: 3/16
Diameter - Shaft - Max: 0.1885
Diameter - Shaft - Min: 0.1870
Length - Grip: 0.75
Width - at Balls: 0.220
Length - to top of Balls: 0.260
Height - Head: 1.23
Diameter - Base of Handle: 0.47
Height - Base of Handle: 0.77
Diameter - Button: 0.23
Length - Handle: 1.73

Part:LAAS-18-075

LAAS-18-075
