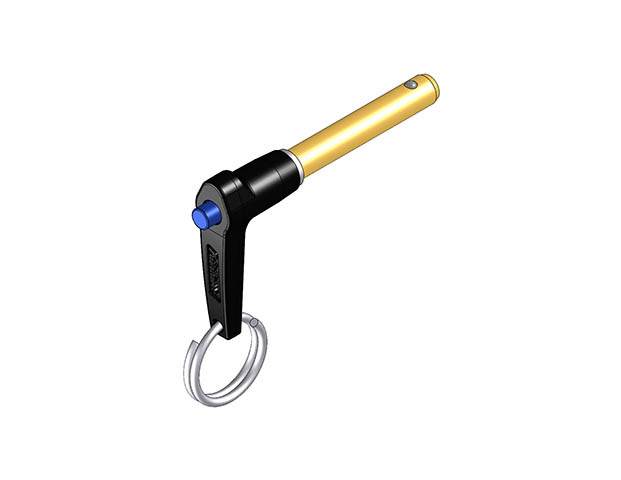

L-Handle Pin - 4130 Shank - 8mm Dia X 40mm

Part Number: MLAAS-08-040
Weight: 0 lbs 4 ozs
Diameter - Nominal: 8
Diameter - Shaft - Max: 7.96
Diameter - Shaft - Min: 7.92
Length - Grip: 40
Width - at Balls: 9.42
Length - to top of Balls: 8
Height - Handle: 30.7
Diameter - Base of Handle: 11.9
Height - Base of Handle: 19.3
Diameter - Button: 5.8
Diameter - Handle - Rim: 46.7

Part:MLAAS-08-040
