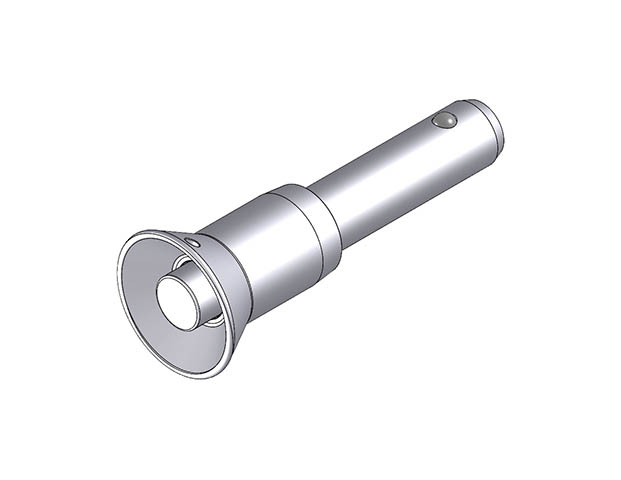

Nautical Handle Pin - 300 Series SS Shank - 1/2 in X 1.25 in

Part Number: NCCS-50-125
Weight: 0 lbs 4 ozs
Diameter - Nominal: 1/2
Diameter - Shaft - Max: 0.4985
Diameter - Shaft - Min: 0.497
Length - Grip: 1.25
Width - at Balls: 0.594
Length - to top of Balls: 0.46
Height - Handle: 1.31
Diameter - Base of Handle: 0.72
Height - Base of Handle: 0.89
Diameter - Button: 0.42
Diameter - Handle - Rim: 1.12

Part:NCCS-50-125

NCCS-50-125

Download

Download CAD models here
