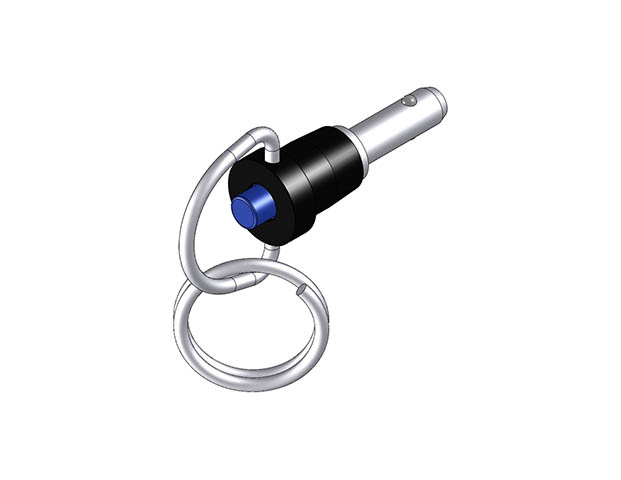

Ring Handle Pin - 300 Series SS Shank - 1/4 in X .50 in

Part Number: RACS-25-050
Weight: 0 lbs 1 ozs
Diameter - Nominal: 1/4
Diameter - Shaft - Max: 0.2485
Diameter - Shaft - Min: 0.247
Length - Grip: 0.5
Width - at Balls: 0.289
Length - to top of Balls: 0.29
Height - Handle: 0.92
Diameter - Base of Handle: 0.47
Diameter - Button: 0.23
Diameter - Handle - Rim: 0.59
Height - Handle And Ring (Extended): 1.45
Width - Ring: 1.16
