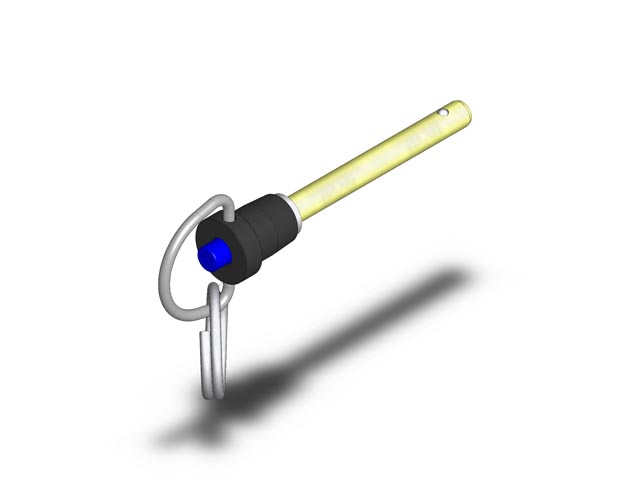

Ring Handle Pin - 4130 Shank - 6mm Dia X 45mm

Part Number: MRAAS-06-045
Weight: 0 lbs 4 ozs
Diameter - Nominal: 6
Diameter - Shaft - Max: 5.96
Diameter - Shaft - Min: 5.92
Length - Grip: 45
Width - at Balls: 6.99
Length - to top of Balls: 7
Height - Handle: 23.4
Diameter - Base of Handle: 11.9
Diameter - Button: 5.8
Diameter - Handle - Rim: 15.0
Height - Handle And Ring (Extended): 36.8
Width - Ring: 29.5

Part:MRAAS-06-045

MRAAS-06-045

Download

Download CAD models here
