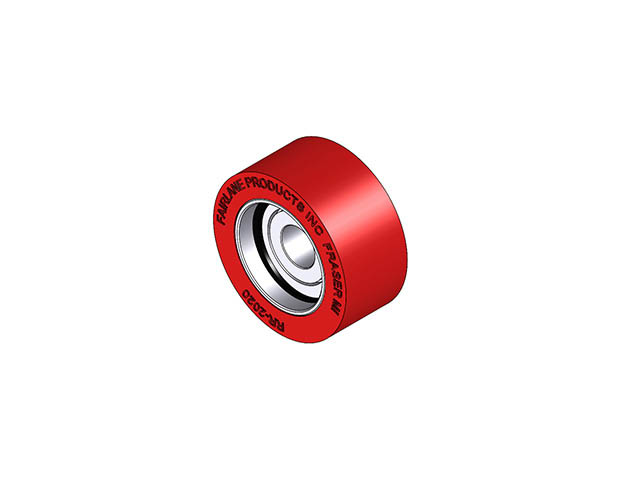

Solid Roller - Standard Bearing Mount - 80 Dur Urethane - 2.00 in Dia X 0.92 in Wide

Part Number: RR-92020-80UR-B
Weight: 0 lbs 3 ozs
Diameter - Overall: 2.00
Material: Urethane
Width - Overall: .92
Diameter - Inside - Bearing: .500/.505
Diameter - Inside - Roller: 1.245/1.250
Width - Bearing: .370/.380
No. of Bearings: 1
Bearing Type: B
Durometer: 80

Part:RR-92020-80UR-B

RR-92020-80UR-B

Download

Download CAD models here
