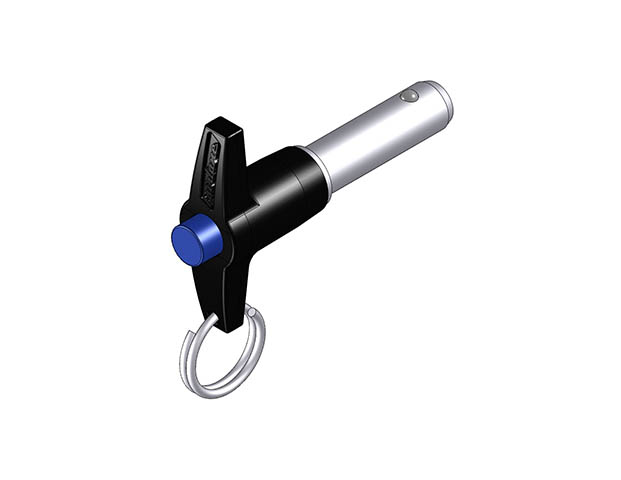

T-Handle Pin - 300 Series SS Shank - 1/2 in X 1.25 in

Part Number: TACS-50-125
Weight: 0 lbs 3 ozs
Diameter - Nominal: 1/2
Diameter - Shaft - Max: 0.4985
Diameter - Shaft - Min: 0.497
Length - Grip: 1.25
Width - at Balls: 0.594
Length - to top of Balls: 0.46
Height - Handle: 1.6
Diameter - Base of Handle: 0.72
Height - Base of Handle: 1.00
Diameter - Button: 0.42
Diameter - Handle - Rim: 2.25

Part:TACS-50-125

TACS-50-125
