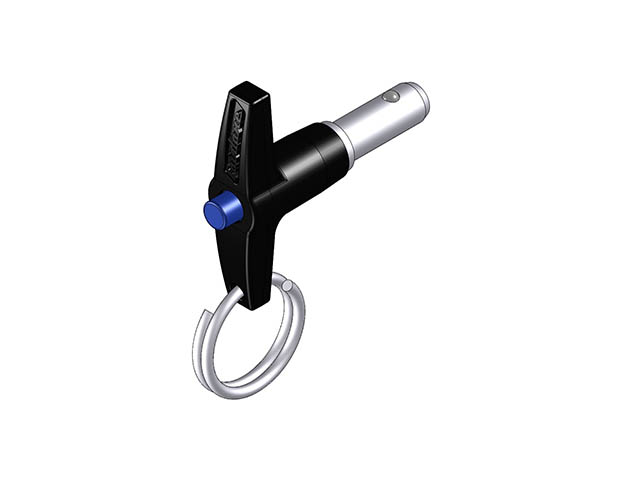

T-Handle Pin - 300 Series SS Shank - 5/16 in X .50 in

Part Number: TACS-31-050
Weight: 0 lbs 1 ozs
Diameter - Nominal: 5/16
Diameter - Shaft - Max: 0.311
Diameter - Shaft - Min: 0.3095
Length - Grip: 0.5
Width - at Balls: 0.375
Length - to top of Balls: 0.33
Height - Handle: 1.21
Diameter - Base of Handle: 0.47
Height - Base of Handle: 0.76
Diameter - Button: 0.23
Diameter - Handle - Rim: 1.81

Part:TACS-31-050

TACS-31-050

Download

Download CAD models here
