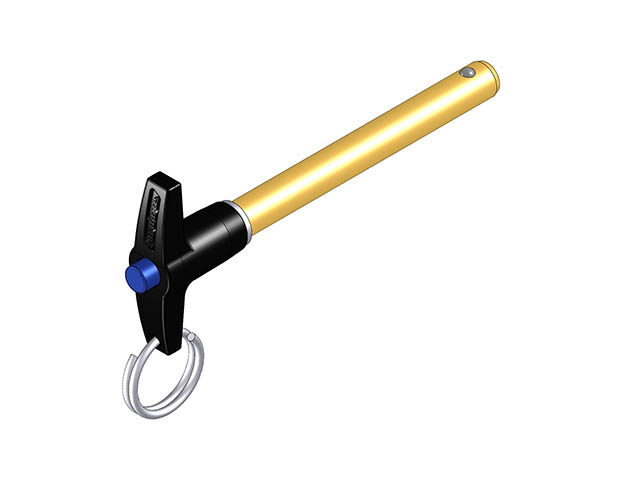

T-Handle Pin - 4130 Shank - 10mm Dia X 80mm

Part Number: MTAAS-10-080
Weight: 0 lbs 4 ozs
Diameter - Nominal: 10
Diameter - Shaft - Max: 9.96
Diameter - Shaft - Min: 9.92
Length - Grip: 80
Width - at Balls: 11.86
Length - to top of Balls: 9
Height - Handle: 34.8
Diameter - Base of Handle: 14.2
Height - Base of Handle: 22.1
Diameter - Button: 7.4
Diameter - Handle - Rim: 50.8

Part:MTAAS-10-080

MTAAS-10-080

Download

Download CAD models here
