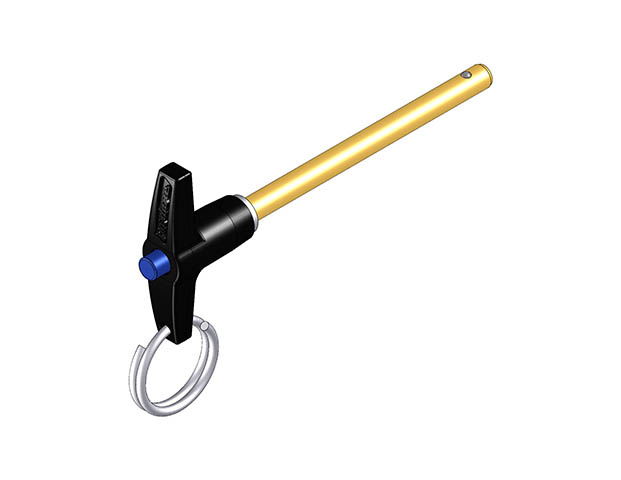

T-Handle Pin - 4130 Shank - 6mm Dia X 70mm

Part Number: MTAAS-06-070
Weight: 0 lbs 4 ozs
Diameter - Nominal: 6
Diameter - Shaft - Max: 5.96
Diameter - Shaft - Min: 5.92
Length - Grip: 70
Width - at Balls: 6.99
Length - to top of Balls: 7
Height - Handle: 30.7
Diameter - Base of Handle: 11.9
Height - Base of Handle: 19.3
Diameter - Button: 5.8
Diameter - Handle - Rim: 46.0

Part:MTAAS-06-070

MTAAS-06-070

Download

Download CAD models here
