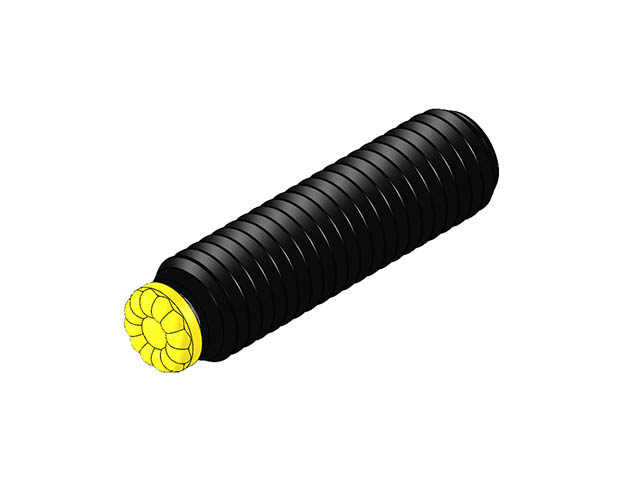

Threaded Design Swivot - M10 X 1.5 X 35 Dur mm - Sof-Top - 35 Dur

Part Number: MTBU-10035-FC-35UR
Weight: 0 lbs 1 ozs
Thread - External: M10x1.5
Length - Thread: 35
Diameter - Contact Surface: 8
Degree- Swivel: 28
Hex - Internal - Flat: 5
Diameter - Ball: 5
Ball Only Part No.: MBUB-050-FC-35UR
Durometer: 35
Thickness - Urethane: 2
Compression - Load: 8

Part:MTBU-10035-FC-35UR

MTBU-10035-FC-35UR
