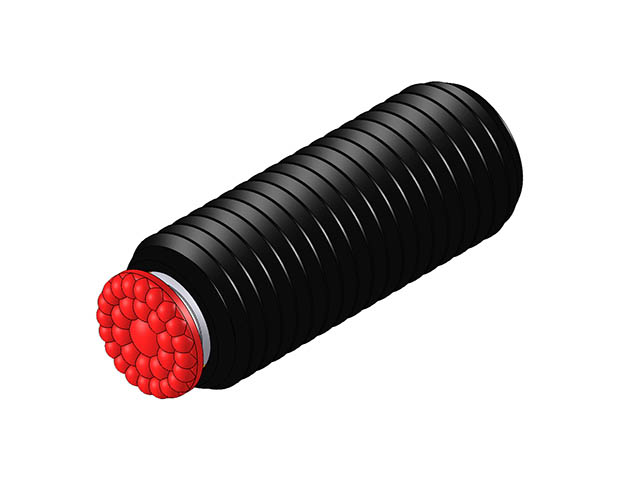

Threaded Design Swivot - M20 X 2.5 X 50 mm - Sof-Top - 80 Dur

Part Number: MTBU-20050-FC-80UR
Weight: 0 lbs 3 ozs
Thread - External: M20x2.5
Length - Thread: 50
Diameter - Contact Surface: 16
Degree- Swivel: 28
Hex - Internal - Flat: 10
Diameter - Ball: 13
Ball Only Part No.: MBUB-130-FC-80UR
Durometer: 80
Thickness - Urethane: 2
Compression - Load: 215

Part:MTBU-20050-FC-80UR

MTBU-20050-FC-80UR
