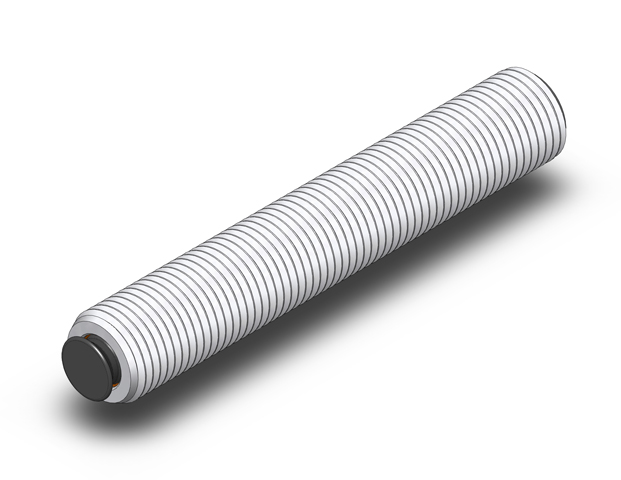

Threaded Thrust Screw - Flat Cone SS - 1/2-13 X 3 in

Part Number: TST-0510X3-FC
Weight: 0 lbs 2 ozs
Thread - External: 1/2-13
Length - Thread: 3
Diameter - Contact Surface: 11/32
Degree Swivel: 28
Hex - Internal - Flat: 1/4
Diameter - Ball: 9/32
Ball Only Part No.: BUB-200-FC
Load - Rating: 4,527

Part:TST-0510X3-FC

TST-0510X3-FC
