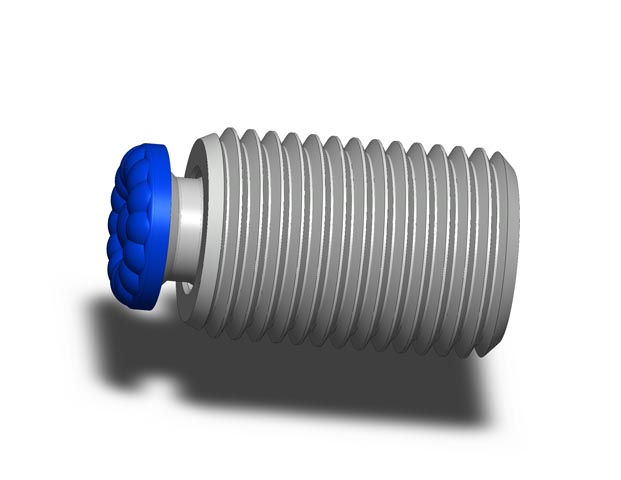

Threaded Thrust Screw - Sof-Top - 1/2-13 X 3/4 - 60 Dur

Part Number: TST-0513-FC-60UR
Thread - External: 1/2-13
Length - Thread: 3/4
Diameter - Contact Surface: .394
Degree Swivel: 28
Hex - Internal - Flat: 1/4
Diameter - Ball: 9/32
Ball Only Part No.: BUB-200-FC-60UR
Durometer: 60
Thickness - Urethane: .08
Load Compression: 25

Part:TST-0513-FC-60UR

TST-0513-FC-60UR
