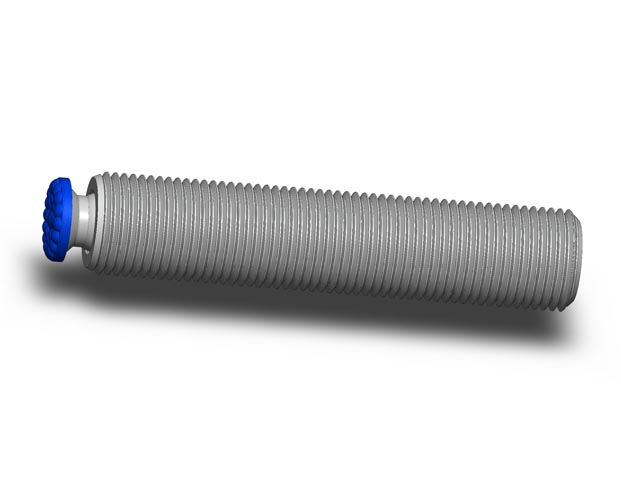

Threaded Thrust Screw - Sof-Top - 5/8-11 X 3 - 60 Dur

Part Number: TST-0625X3-FC-60UR
Weight: 0 lbs 3 ozs
Thread - External: 5/8-11
Length - Thread: 3
Diameter - Contact Surface: .512
Degree Swivel: 28
Hex - Internal - Flat: 5/16
Diameter - Ball: 3/8
Ball Only Part No.: BUB-300-FC-60UR
Durometer: 60
Thickness - Urethane: .08
Load Compression: 75

Part:TST-0625X3-FC-60UR

TST-0625X3-FC-60UR
