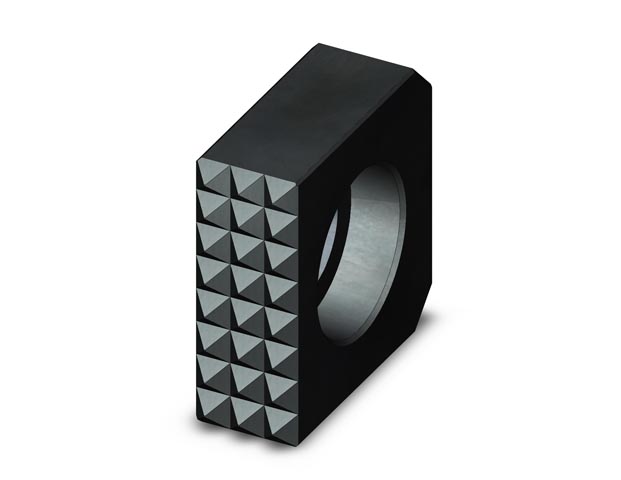

Tool Steel Gripper - Edge - 1 in X 3/8 in - Fine

Part Number: HSE-103
Weight: 0 lbs 1 ozs
Width - Overall: 1
Height - Overall: 3/8
Height - C'Bore: .194
C'Bore For screw - mounting (clearance): 3/8 LHCS
Chamfer: 1/8x45°
Tooth Pattern: Fine

Part:HSE-103

HSE-103

Download

Download CAD models here
