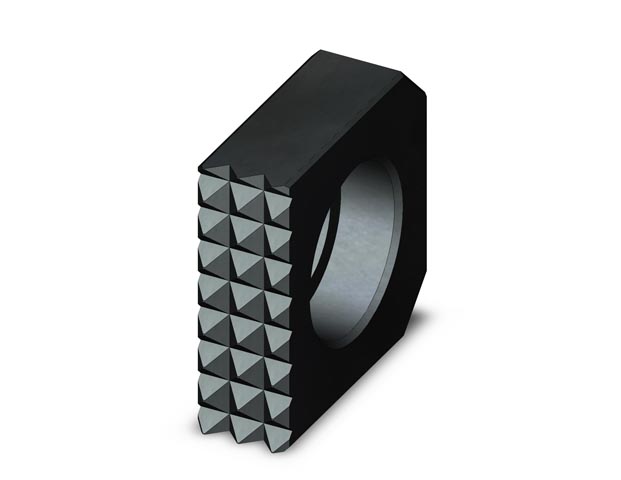

Tool Steel Gripper - Edge - 3/4 in X 1/4 in - Extra Fine

Part Number: HSE-972-EF
Width - Overall: 3/4
Height - Overall: 1/4
Height - C'Bore: .161
C'Bore For screw - mounting (clearance): 5/16 LHCS
Chamfer: 1/8x45°
Tooth Pattern: EF

Part:HSE-972-EF

HSE-972-EF
