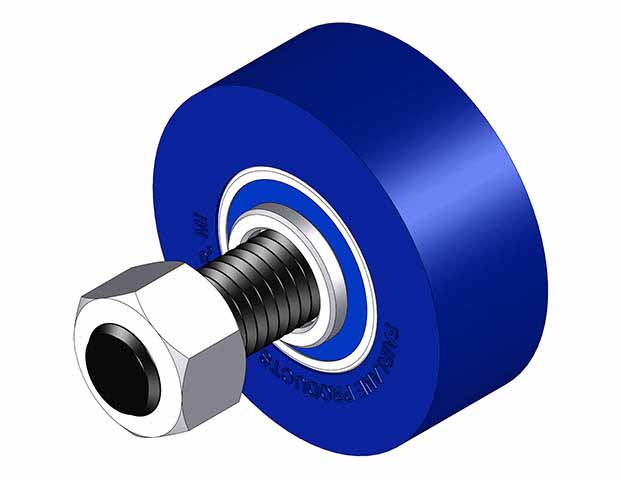

Urethane Covered Bearings - Stud Mount - 60 Dur - 2.00 in Dia X .750 in Width - 1/2-13 Thread

Part Number: CBD-083212-60UR-C
Weight: 0 lbs 5 ozs
Diameter - Outside: 2.00
Width - Roller: .750
Thread - External: 1/2-13
Length - Thread to Roller: 1.250
Height - Standoff - Spacer: .12
Thickness - Urethane: .43
Height - Cap - Screw: .266
Bearing Number: 1616-2RS
Durometer: 60

Part:CBD-083212-60UR-C

CBD-083212-60UR-C

Download

Download CAD models here
