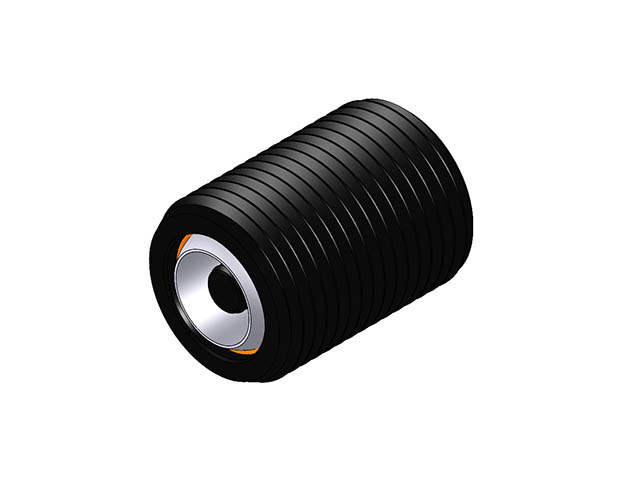

Full Threaded Swivots® Gripper Assembly - Replaceable Pad Style - Inch (TBU)
TBU-0755
Threaded Design Swivot - 3/4-10 X 1 - Replaceable Pad

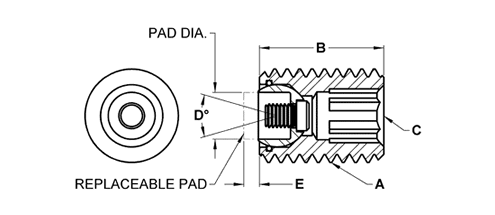

| Part # | A Thread | B Thread Length in | C Int Hex in | D Swivel Degrees | E Standoff 1* in | E Standoff 2* in | Ball Dia in | Replaceable Pad Dia in | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TBU-0750 | 3/4-16 | 1 | 3/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 8,150 | |
| TBU-0750X2 | 3/4-16 | 2 | 3/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 8,150 | |
| TBU-0750X3 | 3/4-16 | 3 | 3/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 8,150 | |
| TBU-0755 | 3/4-10 | 1 | 3/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 8,150 | |
| TBU-0755X2 | 3/4-10 | 2 | 3/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 8,150 | |
| TBU-0755X3 | 3/4-10 | 3 | 3/8 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 8,150 | |
| TBU-1108X2 | 1-8 | 2 | 3/8 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 14,757 | |
| TBU-1108X3 | 1-8 | 3 | 3/8 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 14,757 | |
| TBU-1114X2 | 1-14 | 2 | 3/8 | 34 | 1/8 | 1/4 | 3/4 | 5/8 | 17,210 | |
| TBU-1114X3 | 1-14 | 3 | 3/8 | 34 | 1/8 | 1/4 | 3/4 | 5/8 | 17,210 |
