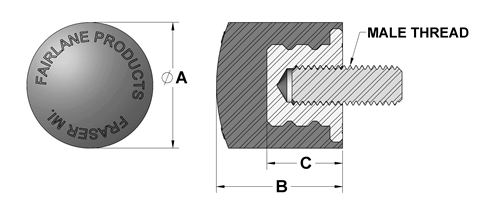

Bumpers - Round - Steel Core - Male Thread - Metric (MRB)
MRB-3X15
Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 15mm
| Part # | A Dia mm | B Length mm | C mm | Durometer Shore A | Thread | Thread Length mm | Material |
|
|---|---|---|---|---|---|---|---|---|

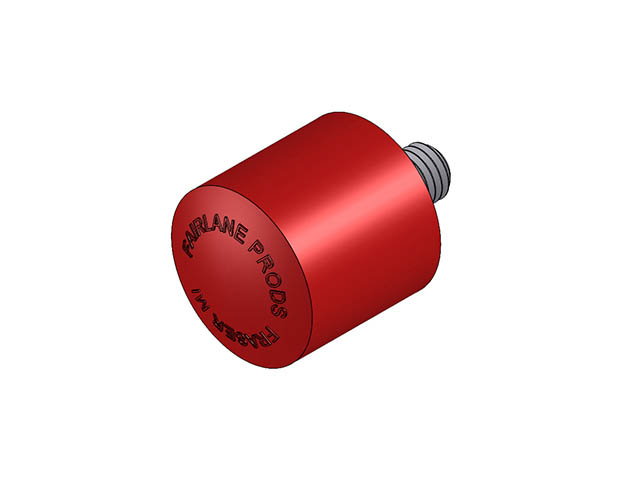

| MRB-3URX15 | 32 | 32 | 19.0 | 80 | M10x1.5 | 15 | Urethane | |
| MRB-3URX30 | 32 | 32 | 19.0 | 80 | M10x1.5 | 30 | Urethane | |
| MRB-3X15 | 32 | 32 | 19.0 | 40 | M10x1.5 | 15 | Neoprene | |
| MRB-3X30 | 32 | 32 | 19.0 | 40 | M10x1.5 | 30 | Neoprene | |
| MRB-5URX15 | 32 | 32 | 19.0 | 80 | M12x1.75 | 15 | Urethane | |
| MRB-5URX30 | 32 | 32 | 19.0 | 80 | M12x1.75 | 30 | Urethane | |
| MRB-5X15 | 32 | 32 | 19.0 | 40 | M12x1.75 | 15 | Neoprene | |
| MRB-5X30 | 32 | 32 | 19.0 | 40 | M12x1.75 | 30 | Neoprene | |
| MRB-8URX15 | 32 | 32 | 19.0 | 80 | M16x2.0 | 15 | Urethane | |
| MRB-8URX30 | 32 | 32 | 19.0 | 80 | M16x2.0 | 30 | Urethane | |
| MRB-8X15 | 32 | 32 | 19.0 | 40 | M16x2.0 | 15 | Neoprene | |
| MRB-8X30 | 32 | 32 | 19.0 | 40 | M16x2.0 | 30 | Neoprene | |
| MRB-9URX15 | 45 | 42 | 22.5 | 80 | M16x2.0 | 15 | Urethane | |
| MRB-9URX30 | 45 | 42 | 22.5 | 80 | M16x2.0 | 30 | Urethane | |
| MRB-9X15 | 45 | 42 | 22.5 | 40 | M16x2.0 | 15 | Neoprene | |
| MRB-9X30 | 45 | 42 | 22.5 | 40 | M16x2.0 | 30 | Neoprene |
