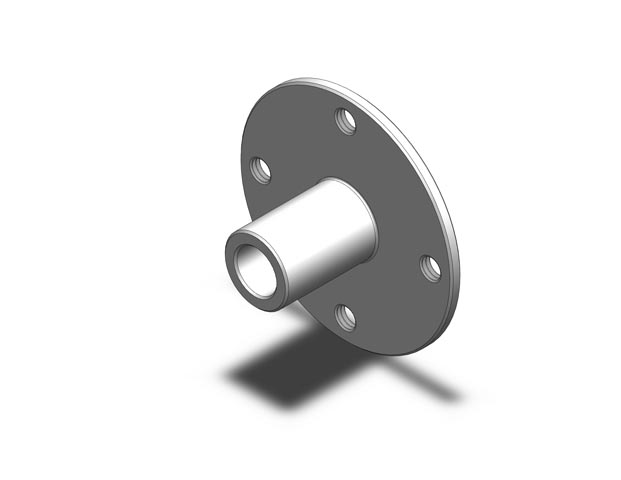

Quick Release Pin Flanged Receptacle - Round - Inch (ROFR)
ROFR-187
Ball Lock Pin Receptacle - Round - 3/16 in

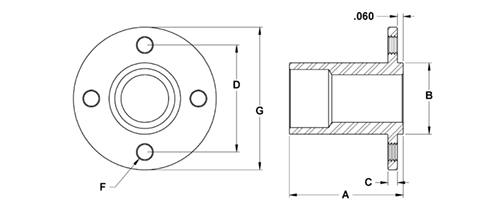

| Part # | Use With Pin Dia in | Flange Style in | A in | B in | C in | D in | E in | F Thread | G in | Grip Length Reduction in |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| ROFR-187 | 3/16 | Round | 0.650 | 0.375 | 0.060 | 1.000 | - | 6-32 | 1.250 | 0.375 | |
| ROFR-250 | 1/4 | Round | 0.650 | 0.375 | 0.060 | 1.000 | - | 6-32 | 1.250 | 0.375 | |
| ROFR-312 | 5/16 | Round | 0.783 | 0.469 | 0.060 | 1.000 | - | 6-32 | 1.250 | 0.500 | |
| ROFR-375 | 3/8 | Round | 0.913 | 0.562 | 0.060 | 1.000 | - | 6-32 | 1.250 | 0.562 | |
| ROFR-500 | 1/2 | Round | 1.195 | 0.750 | 0.100 | 1.125 | - | 10-32 | 1.500 | 0.750 |
