Base Design Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MBBU-FC)
MBBU-1012-FC

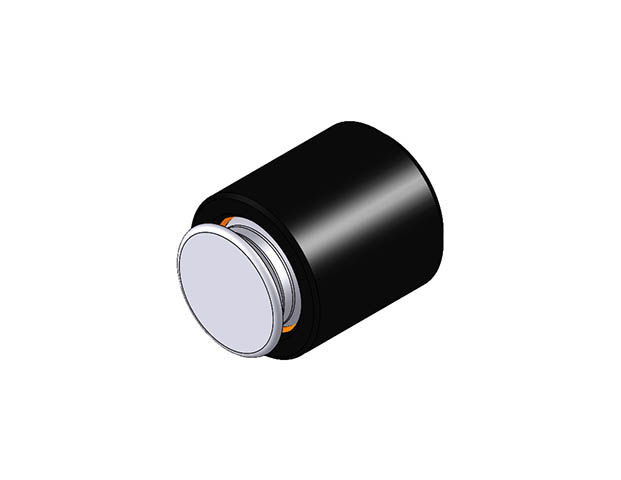

Base Design Swivot - 10 mm Dia X 10.5 mm - SS Cone

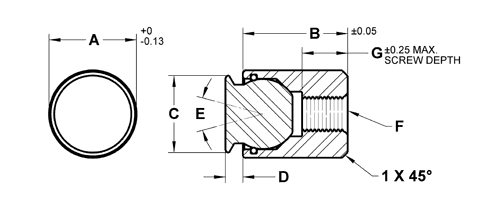

| Part # | A Dia mm | B Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Tap | G Thread Depth mm | Ball Dia mm | Ball Only Part No. mm | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MBBU-1012-FC | 10 | 10.5 | 8 | 2 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-FC | 2,585 | |
| MBBU-1025-FC | 10 | 23.5 | 8 | 2 | 28 | M4x0.7 | 9 | 7 | MBUB-070-FC | 2,585 | |
| MBBU-1316-FC | 13 | 14.5 | 11 | 3 | 28 | M5x0.8 | 6.5 | 10 | MBUB-100-FC | 4,452 | |
| MBBU-1325-FC | 13 | 23.5 | 11 | 3 | 28 | M5x0.8 | 9 | 10 | MBUB-100-FC | 4,452 | |
| MBBU-1722-FC | 17 | 18 | 14 | 3 | 28 | M6x1.0 | 7.5 | 13 | MBUB-130-FC | 6,170 | |
| MBBU-1924-FC | 19 | 20 | 19 | 4 | 24 | M8x1.25 | 8.5 | 15 | MBUB-150-FC | 8,688 | |
| MBBU-2428-FC | 24 | 24 | 21 | 4 | 24 | M10x1.5 | 9 | 20 | MBUB-200-FC | 13,117 |
