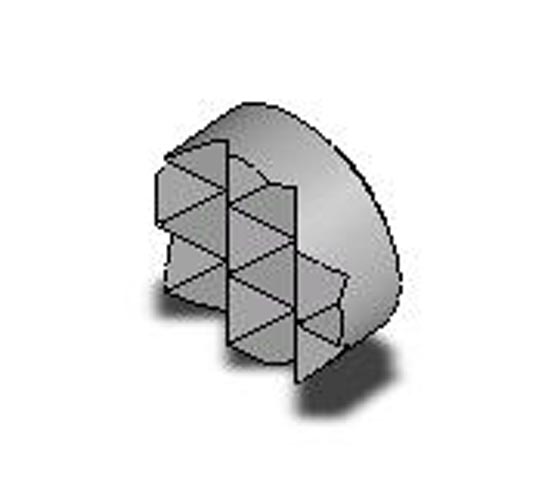

Gripper Pads - Round - Carbide - Diamond Serration - Inch (CC)
CC-1
Carbide Gripper Pad - Circle - 1/4 in Dia X 1/8 in - Extra Fine

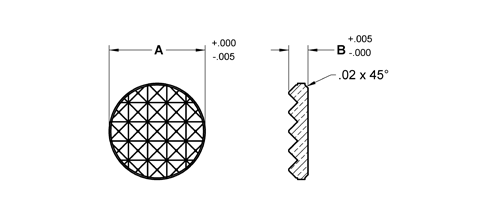

| Part # | A OD in | B in | Tooth Pattern |
|
|---|---|---|---|---|
| CC-1 | 1/4 | 1/8 | EF | |
| CC-1-SF | 1/4 | 1/8 | SF | |
| CC-2 | 5/16 | 1/8 | EF | |
| CC-2-4 | 5/16 | 1/8 | 4 Point | |
| CC-2-SF | 5/16 | 1/8 | SF | |
| CC-3 | 3/8 | 1/8 | Fine | |
| CC-3-4 | 3/8 | 1/8 | 4 Point | |
| CC-3-EF | 3/8 | 1/8 | EF | |
| CC-4 | 1/2 | 1/8 | Fine | |
| CC-437 | 7/16 | 1/8 | Fine | |
| CC-437-4 | 7/16 | 5/32 | 4 Point | |
| CC-437-EF | 7/16 | 1/8 | EF | |
| CC-4-4 | 1/2 | 5/32 | 4 Point | |
| CC-4-EF | 1/2 | 1/8 | EF | |
| CC-5 | 5/8 | 1/8 | Fine | |
| CC-5-EF | 5/8 | 1/8 | EF | |
| CC-6 | 3/4 | 1/8 | Fine | |
| CC-6-EF | 3/4 | 1/8 | EF | |
| CC-6X156-EF | 3/4 | 5/32 | EF | |
| CC-8-EF | 1 | 5/32 | EF |
