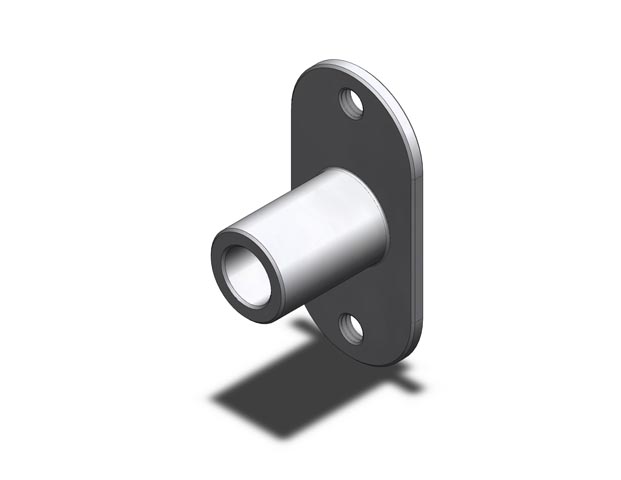

Quick Release Pin Flanged Receptacle - Oblong - Metric (MOBFR)
MOBFR-05
Ball Lock Pin Receptacle - Oblong - 5 mm

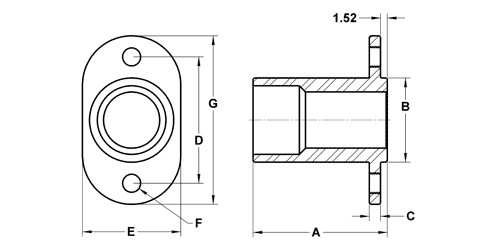

| Part # | Use With Pin Diameter | Flange Style | A mm | B mm | C mm | D mm | E mm | F Thread | G mm | Grip Length Reduction mm |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MOBFR-05 | 5mm | Oblong | 16.51 | 9.53 | 1.52 | 25 | 15.88 | M4 | 31.75 | 10 | |
| MOBFR-06 | 6mm | Oblong | 16.51 | 9.53 | 1.52 | 25 | 15.88 | M4 | 31.75 | 10 | |
| MOBFR-08 | 8mm | Oblong | 19.89 | 11.91 | 1.52 | 25 | 15.88 | M4 | 31.75 | 13 | |
| MOBFR-10 | 10mm | Oblong | 23.19 | 14.29 | 1.52 | 25 | 15.88 | M4 | 31.75 | 15 | |
| MOBFR-12 | 12mm | Oblong | 30.35 | 19.05 | 2.54 | 29 | 22.23 | M5 | 38.10 | 20 |
