Grippers - Round - Tool Steel - Diamond Serration - Tapped - Inch (HS)
HS-40

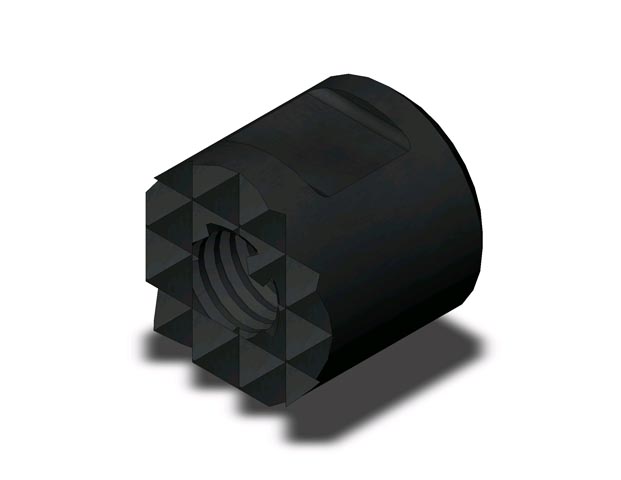

Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine

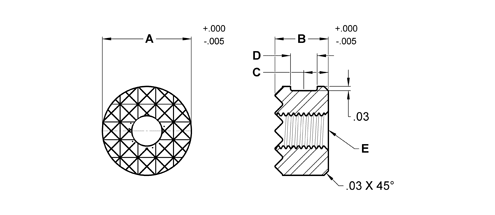

| Part # | A OD in | B Height in | C Flat Position in | D Flats in | E Tap | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| HS-40 | 3/8 | 3/8 | 11/64 | 3/16 | #10-32 | EF | |
| HS-405 | 3/8 | 1/2 | 15/64 | 3/16 | #10-32 | EF | |
| HS-405-SF | 3/8 | 1/2 | 15/64 | 3/16 | #10-32 | SF | |
| HS-40-SF | 3/8 | 3/8 | 11/64 | 3/16 | #10-32 | SF | |
| HS-50 | 1/2 | 3/8 | 11/64 | 3/16 | #10-32 | Fine | |
| HS-50-EF | 1/2 | 3/8 | 11/64 | 3/16 | #10-32 | EF | |
| HS-50-SF | 1/2 | 3/8 | 11/64 | 3/16 | #10-32 | SF | |
| HS-51 | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | Coarse | |
| HS-52 | 1/2 | 1/2 | Keyway | – | #10-32 | Fine | |
| HS-52-EF | 1/2 | 1/2 | Keyway | – | #10-32 | EF | |
| HS-53 | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | Fine | |
| HS-53-EF | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | EF | |
| HS-53-SF | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | SF | |
| HS-54 | 1/2 | .651 | 19/64 | 3/16 | #10-32 | Fine | |
| HS-54-EF | 1/2 | .651 | 19/64 | 3/16 | #10-32 | EF | |
| HS-62 | 5/8 | 3/8 | 11/64 | 3/16 | 1/4-28 | Fine | |
| HS-625 | 5/8 | 1/2 | 15/64 | 3/16 | 1/4-28 | Fine | |
| HS-625-EF | 5/8 | 1/2 | 15/64 | 3/16 | 1/4-28 | EF | |
| HS-62-EF | 5/8 | 3/8 | 11/64 | 3/16 | 1/4-28 | EF | |
| HS-63 | 5/8 | 3/8 | 11/64 | 3/16 | 1/4-28 | Coarse | |
| HS-635 | 5/8 | 1/2 | 15/64 | 3/16 | 1/4-28 | Coarse | |
| HS-75 | 3/4 | 3/8 | 11/64 | 3/16 | 1/4-28 | Fine | |
| HS-755 | 3/4 | 1/2 | 15/64 | 3/16 | 1/4-28 | Fine | |
| HS-755-EF | 3/4 | 1/2 | 15/64 | 3/16 | 1/4-28 | EF | |
| HS-75-EF | 3/4 | 3/8 | 11/64 | 3/16 | 1/4-28 | EF | |
| HS-76 | 3/4 | 3/8 | 11/64 | 3/16 | 1/4-28 | Coarse | |
| HS-765 | 3/4 | 1/2 | 15/64 | 3/16 | 1/4-28 | Coarse | |
| HS-81 | 1 | 3/8 | 11/64 | 3/16 | 1/4-28 | Coarse | |
| HS-815 | 1 | 1/2 | 15/64 | 3/16 | 1/4-28 | Coarse | |
| HS-82 | 1 | 3/8 | 11/64 | 3/16 | 1/4-28 | Fine | |
| HS-825 | 1 | 1/2 | 15/64 | 3/16 | 1/4-28 | Fine | |
| HS-825-EF | 1 | 1/2 | 15/64 | 3/16 | 1/4-28 | EF | |
| HS-82-EF | 1 | 3/8 | 11/64 | 3/16 | 1/4-28 | EF |
