Grippers - Round - Stainless Steel - Diamond Surface - C'Bored - Inch (CSRP-C-DS)



CSRP-40-C-DS

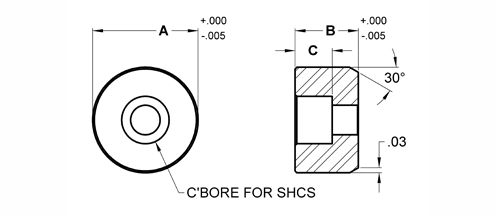

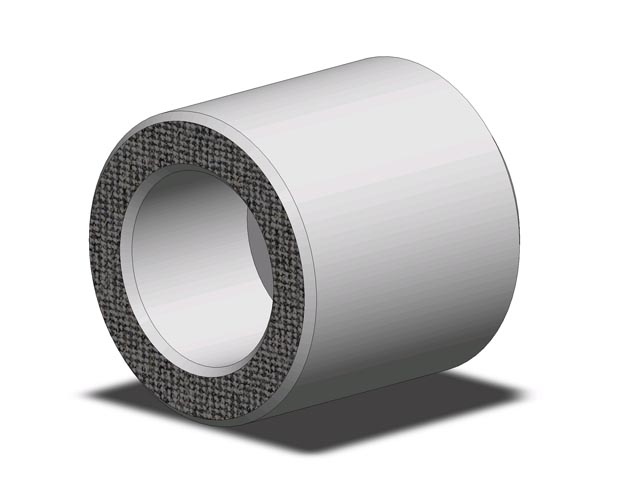

Diamond Surface Gripper - C'Bore - 3/8 Dia X 3/8

Part # A
Dia
in		B
Height
in		C
C'Bore to Fit
 C'Bore Depth
in
CSRP-405-C-DS3/81/2#6 SHCS3/16
CSRP-40-C-DS3/83/8#6 SHCS3/16
CSRP-50-C-DS1/23/8#8 SHCS7/32
CSRP-53-C-DS1/21/2#8 SHCS7/32
CSRP-625-C-DS5/81/2#8 SHCS7/32
CSRP-62-C-DS5/83/8#8 SHCS7/32
CSRP-755-C-DS3/41/2#10 SHCS1/4
CSRP-75-C-DS3/43/8#10 SHCS1/4
CSRP-815-C-DS11/21/4 SHCS9/32
CSRP-81-C-DS13/81/4 SHCS9/32
