Grippers - Round - Stainless Steel - Diamond Surface - C'Bored - Metric (MCSRP-C-DS)
MCSRP-100-C-DS

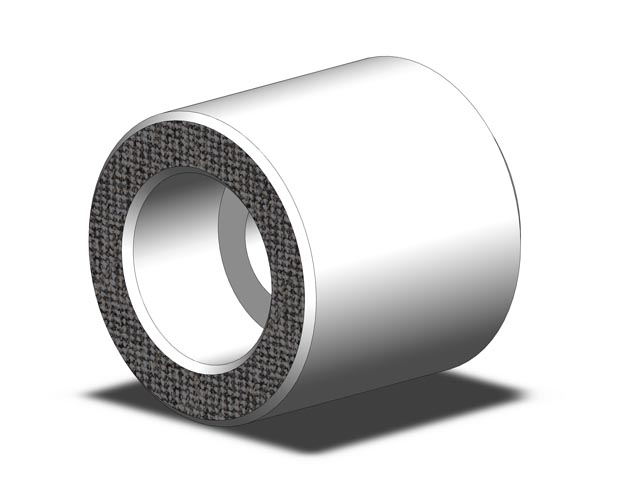

Diamond Surface Gripper - C'Bore - 10 mm Dia X 10 mm

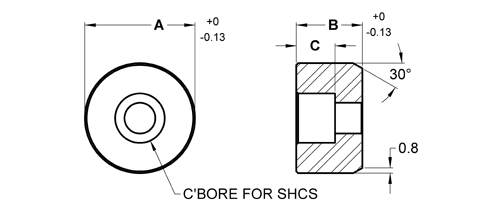

| Part # | A Dia mm | B Height mm | C'Bore to Fit | C C'Bore Depth mm |
|
|---|---|---|---|---|---|
| MCSRP-100-C-DS | 10 | 10 | M3 SHCS | 5.0 | |
| MCSRP-102-C-DS | 10 | 12 | M3 SHCS | 5.0 | |
| MCSRP-120-C-DS | 12 | 10 | M4 SHCS | 5.6 | |
| MCSRP-122-C-DS | 12 | 12 | M4 SHCS | 5.6 | |
| MCSRP-160-C-DS | 16 | 10 | M5 SHCS | 6.6 | |
| MCSRP-162-C-DS | 16 | 12 | M5 SHCS | 6.6 | |
| MCSRP-200-C-DS | 20 | 10 | M6 SHCS | 7.6 | |
| MCSRP-202-C-DS | 20 | 12 | M6 SHCS | 7.6 | |
| MCSRP-250-C-DS | 25 | 10 | M6 SHCS | 7.6 | |
| MCSRP-252-C-DS | 25 | 12 | M6 SHCS | 7.6 |
