Quick Release Pin End Cap - Plain - Inch (RC)
RC-187
Ball Lock Pin End Caps - Plain End - 3/16 in

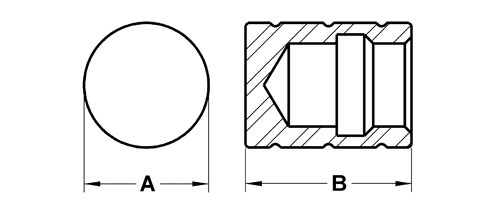

| Part # | Use With Pin Dia in | A Dia in | B Length in | Grip Length Reduction in |
|
|---|---|---|---|---|---|
| RC-187 | 3/16 | 0.375 | 0.580 | 0.125 | |
| RC-250 | 1/4 | 0.375 | 0.580 | 0.125 | |
| RC-312 | 5/16 | 0.500 | 0.625 | 0.125 | |
| RC-375 | 3/8 | 0.563 | 0.730 | 0.187 | |
| RC-500 | 1/2 | 0.750 | 1.000 | 0.250 | |
| RC-625 | 5/8 | 1.000 | 1.250 | 0.250 |
