Grippers - Angle Style - Tool Steel - Serrated - Tapped - Inch (HS)
HS-110

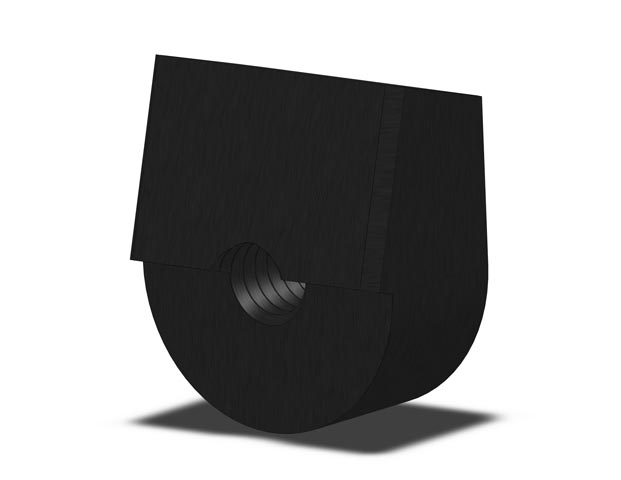

Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Smooth

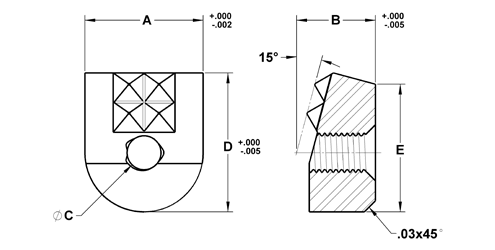

| Part # | A Width in | B Height in | C Tap | D Length in | E Base in | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| HS-110 | 9/16 | 3/8 | #10-32 | .65 | .60 | Smooth | |
| HS-110-10MM | 10 | 3/8 | #10-32 | .65 | .60 | Smooth | |
| HS-127-12 | 9/16 | 3/8 | #10-32 | .65 | .60 | Fine | |
| HS-127-4 | 9/16 | 3/8 | #10-32 | .65 | .60 | 4Point | |
| HS-127-4-10MM | 10 | 3/8 | #10-32 | .65 | .60 | 4 Point | |
| HS-128-22 | 3/4 | 1/2 | 1/4-28 | .88 | .81 | Fine | |
| HS-128-4 | 3/4 | 1/2 | 1/4-28 | .88 | .81 | 4 Point | |
| HS-130-4 | 9/16 | 3/8 | #10-32 | .65 | .60 | Straight | |
| HS-130-4-10MM | 10 | 3/8 | #10-32 | .65 | .60 | Straight | |
| HS-145-5 | 9/16 | 3/8 | #10-32 | .65 | .60 | Angular | |
| HS-145-5-10MM | 10 | 3/8 | #10-32 | .65 | .60 | Angular | |
| HS-150-3 | 9/16 | 3/8 | #10-32 | .65 | .60 | 3 Point/90°ST | |
| HS-150-3-10MM | 10 | 3/8 | #10-32 | .65 | .60 | 3 Point/90°ST | |
| HS-158-3 | 3/4 | 1/2 | 1/4-28 | .88 | .81 | 3 Point/90°ST | |
| MHS-110 | 9/16 | 3/8 | M5x0.8 | .65 | .60 | Smooth | |
| MHS-110-10MM | 10 | 3/8 | M5x0.8 | .65 | .60 | Smooth | |
| MHS-127-12 | 9/16 | 3/8 | M5x0.8 | .65 | .60 | Fine | |
| MHS-127-4 | 9/16 | 3/8 | M5x0.8 | .65 | .60 | 4 Point | |
| MHS-127-4-10MM | 10 | 3/8 | M5x0.8 | .65 | .60 | 4 Point | |
| MHS-130-4 | 9/16 | 3/8 | M5x0.8 | .65 | .60 | Straight | |
| MHS-130-4-10MM | 10 | 3/8 | M5x0.8 | .65 | .60 | Straight | |
| MHS-145-5 | 9/16 | 3/8 | M5x0.8 | .65 | .60 | Angular | |
| MHS-145-5-10MM | 10 | 3/8 | M5x0.8 | .65 | .60 | Angular | |
| MHS-150-3 | 9/16 | 3/8 | M5x0.8 | .65 | .60 | 3 Point/90°ST | |
| MHS-150-3-10MM | 10 | 3/8 | M5x0.8 | .65 | .60 | 3 Point/90°ST |
