Grippers - Round - Tool Steel - Straight Serration - Tapped - Inch (HS-SS)
HS-40-SS

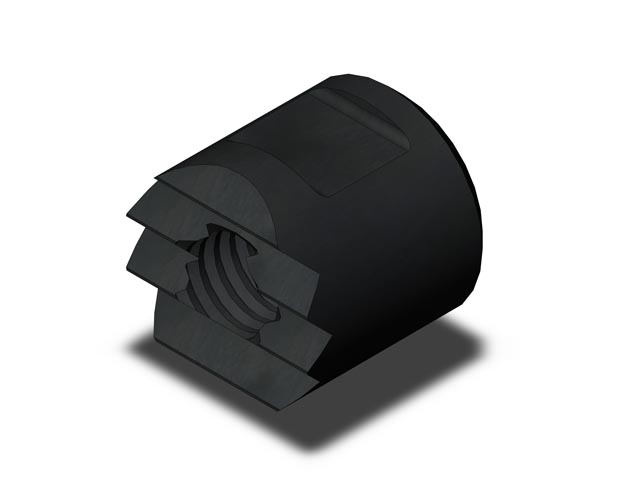

Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine Straight

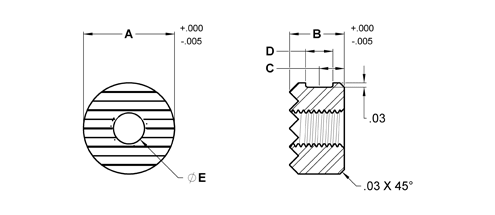

| Part # | A OD in | B Height in | C Flat Position in | D Flats in | E Tap | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| HS-405-SS | 3/8 | 1/2 | 15/64 | 3/16 | #10-32 | EF | |
| HS-405-SS-SF | 3/8 | 1/2 | 15/64 | 3/16 | #10-32 | SF | |
| HS-40-SS | 3/8 | 3/8 | 11/64 | 3/16 | #10-32 | EF | |
| HS-40-SS-SF | 3/8 | 3/8 | 11/64 | 3/16 | #10-32 | SF | |
| HS-50-SS | 1/2 | 3/8 | 11/64 | 3/16 | #10-32 | Fine | |
| HS-50-SS-EF | 1/2 | 3/8 | 11/64 | 3/16 | #10-32 | EF | |
| HS-50-SS-SF | 1/2 | 3/8 | 11/64 | 3/16 | #10-32 | SF | |
| HS-51-SS | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | Coarse | |
| HS-53-SS | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | Fine | |
| HS-53-SS-EF | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | EF | |
| HS-53-SS-SF | 1/2 | 1/2 | 15/64 | 3/16 | #10-32 | SF | |
| HS-625-SS | 5/8 | 1/2 | 15/64 | 3/16 | 1/4-28 | Fine | |
| HS-625-SS-EF | 5/8 | 1/2 | 15/64 | 3/16 | 1/4-28 | EF | |
| HS-62-SS | 5/8 | 3/8 | 11/64 | 3/16 | 1/4-28 | Fine | |
| HS-62-SS-EF | 5/8 | 3/8 | 11/64 | 3/16 | 1/4-28 | EF | |
| HS-635-SS | 5/8 | 1/2 | 15/64 | 3/16 | 1/4-28 | Coarse | |
| HS-63-SS | 5/8 | 3/8 | 11/64 | 3/16 | 1/4-28 | Coarse | |
| HS-755-SS | 3/4 | 1/2 | 15/64 | 3/16 | 1/4-28 | Fine | |
| HS-755-SS-EF | 3/4 | 1/2 | 15/64 | 3/16 | 1/4-28 | EF | |
| HS-75-SS | 3/4 | 3/8 | 11/64 | 3/16 | 1/4-28 | Fine | |
| HS-75-SS-EF | 3/4 | 3/8 | 11/64 | 3/16 | 1/4-28 | EF | |
| HS-765-SS | 3/4 | 1/2 | 15/64 | 3/16 | 1/4-28 | Coarse | |
| HS-76-SS | 3/4 | 3/8 | 11/64 | 3/16 | 1/4-28 | Coarse | |
| HS-815-SS | 1 | 1/2 | 15/64 | 3/16 | 1/4-28 | Coarse | |
| HS-81-SS | 1 | 3/8 | 11/64 | 3/16 | 1/4-28 | Coarse | |
| HS-825-SS | 1 | 1/2 | 15/64 | 3/16 | 1/4-28 | Fine | |
| HS-825-SS-EF | 1 | 1/2 | 15/64 | 3/16 | 1/4-28 | EF | |
| HS-82-SS | 1 | 3/8 | 11/64 | 3/16 | 1/4-28 | Fine | |
| HS-82-SS-EF | 1 | 3/8 | 11/64 | 3/16 | 1/4-28 | EF |
